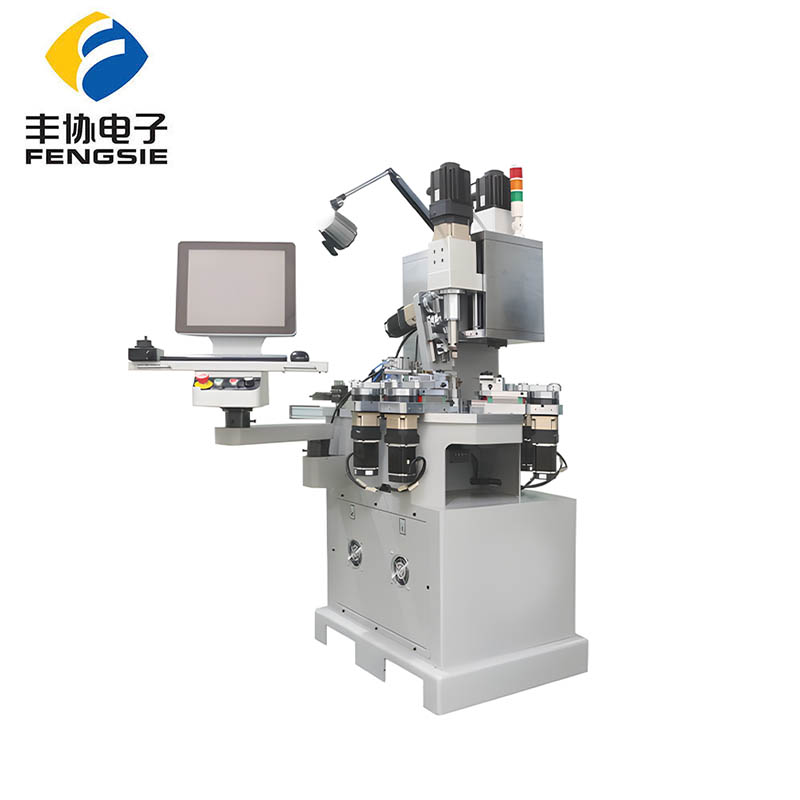

Inductor Coil Winding Machine

1.Stable Transmission Structure: The machine features an optimized mechanical design combined with high-resolutionservo motor control, ensuring smooth motion, fast response, and high repeat positioning accuracy-ideal for long-termprecision winding operations.
2.High-Precision Spindle: The spindle is processed using,imported high-precision CNC lathes. lt ensures high stability whenwinding fine wires or small cross-section flat wires, maintaining, excellent coil concentricity and machine consistency.
3.Multiple Winding, Modes: Supports various winding methods such as clockwise, counterclockwise, dense winding.variable pitch, single-layer, and multi-layer. Compatible with both round and flat wires, meeting the needs of diversevertical coil configurations.
4.Quick Changeover and Setup: Wire changes require only a tooling replacement, The structure allows easy and fastadjustment, and multiple parameter sets can be saved and recalled for efficient changeover and reduced setup time.
5.inteligent Programming, Capability: Equipped with an industrial pc-based control system, the machine supports coilsimulation and automatic path generation. By inputting,parameters such as coil inner diameter, terminal leg length, andnumber of layers, the system generates winding programs automatically, significantly simplifying operation.
