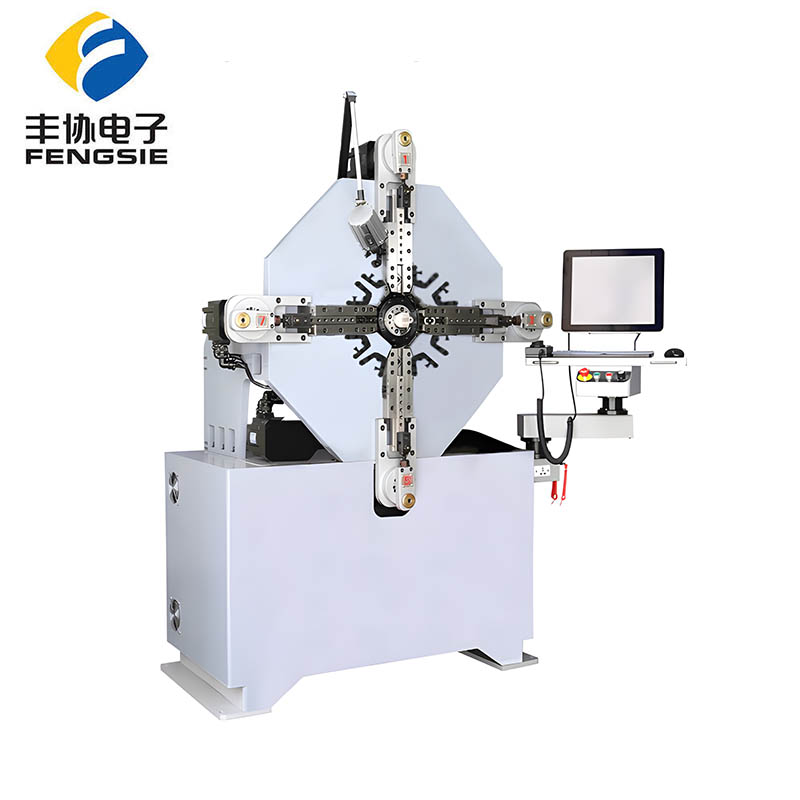

OEM/ODM High-end Flat Copper Wire Winding Machine Custom Wholesale Los Angeles Makers-Fengxie

1.High-Precision Servo Control System: Equipped with an industrial-grade control platform and imported servomotors with planetary reducers,ensuring high efficiency, accuracy, and stability duringoperation.

2.Six-Axis Coordinated Motion Design: lncludes feeding, winding, traversing, and multi-axis forming units. Each axis isindependently controlled and works in coordination to perform complex forming tasks.

3.Multiple Winding Modes and Coil Shapes: Supports clockwise/counterclockwise winding, dense winding, variablepitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.

4.Quick Changeover and Efficient Setup: Tooling, change allows for different wire specifications; machine parameterscan be saved and quickly recalled for fast model switching and reduced setup time.

5.lindustrial Control interface with Flexible Numeric Programming: Features an intuitive industrial HMl, supportingnumeric input programming and graphical path simulation for easy operation and quick learning curve.

Model	FX-680
Processing Capacity	Thickness : 1.0mm ≤ T ≤ 6.0mm Width : 5.0mm ≤ W ≤ 20.0mm S=W*T≤ 80mm²
Winding Direction	Right and Left Winding
Max Coil Height	≤200mm
Slide Axis Stroke	≤90mm
Wire Feeding Motor Power	5.5KW
Winding Motor Power	1.0KW
Slide Motor Power	1.8KW×4
Dimension(LxWxH)	1700X1250X1900(mm³)
Weight	1400kg
