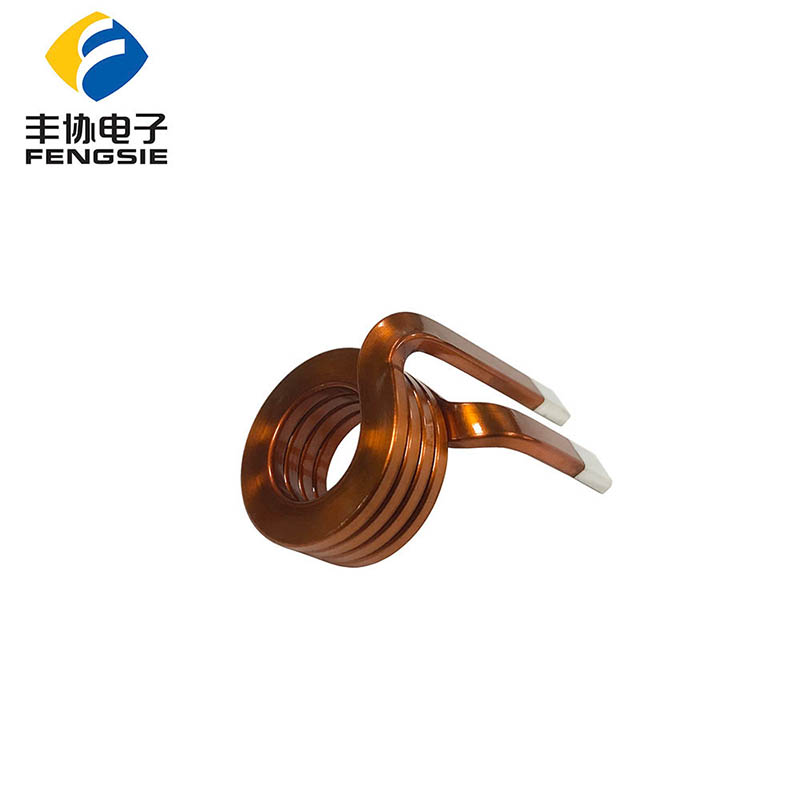

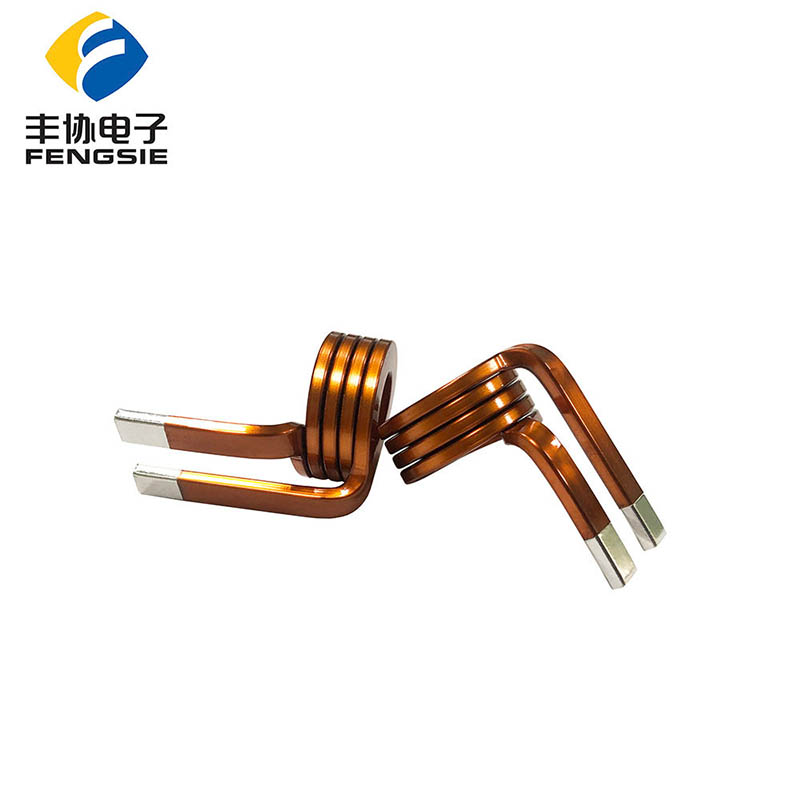

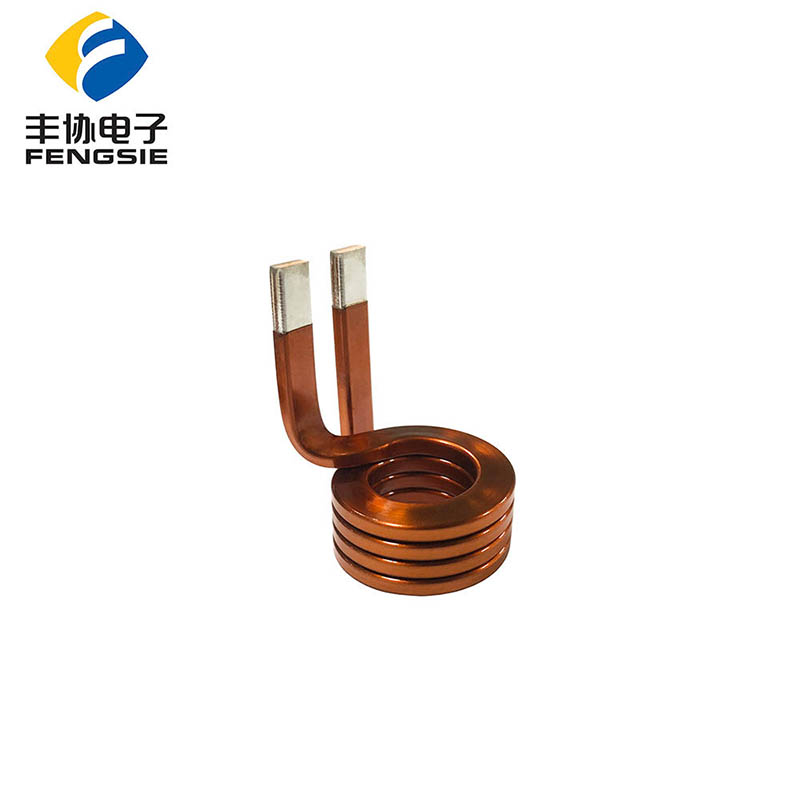

Power Inductor Transformer Coil
Key Specifications:
1. Core Dimensions: 2.0×4.2×11.2 mm
2. Overall Size: 26×20×20 mm
3. Turn Count: 4.25 Turns
4. Operating Temperature Range: -40℃ to +125℃
Features:
1. Optimized Magnetic Structure: Provides high efficiency and stable inductance in compact transformer designs
2. Wide Temperature Endurance: Maintains consistent performance across environments from -40℃ to +125℃
3. Space-Saving Design: Compact cubic footprint enables high-density PCB integration
4. Precision Partial-Turn Winding: Advanced 4.25-turn configuration ensures accurate inductance control and reduced core loss
Applications:
1. Switching Power Transformers
2. Isolated DC-DC Converters
3. Power Supply Modules
4. Industrial Control Systems
5. Automotive Power Electronics
