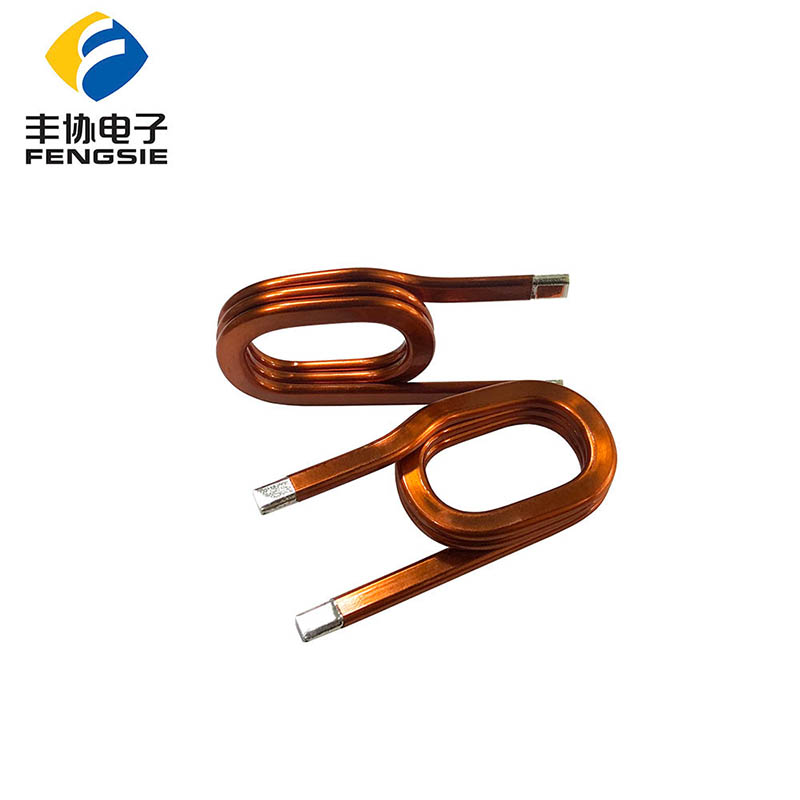

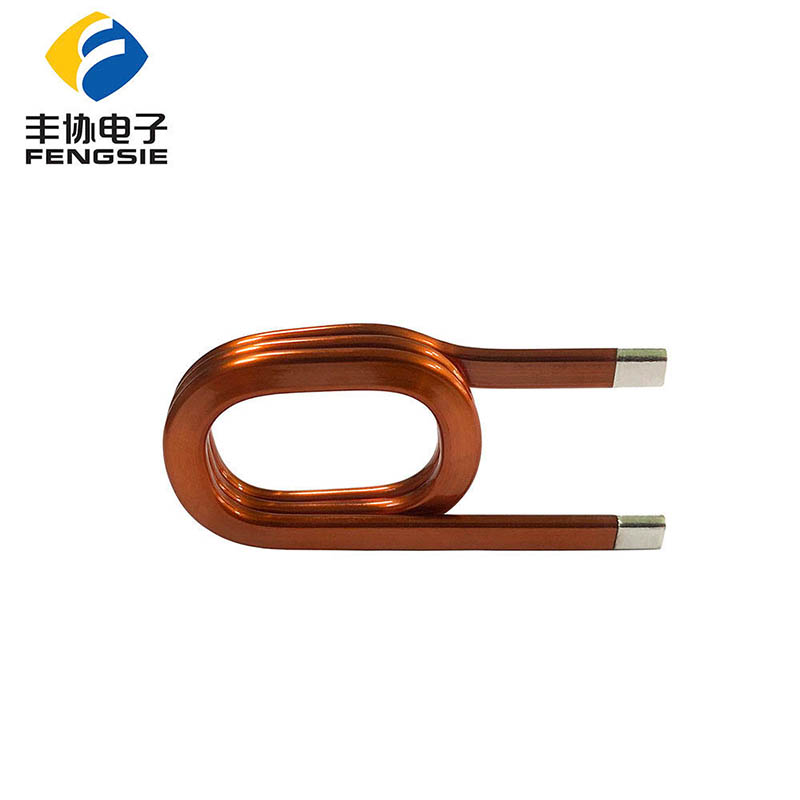

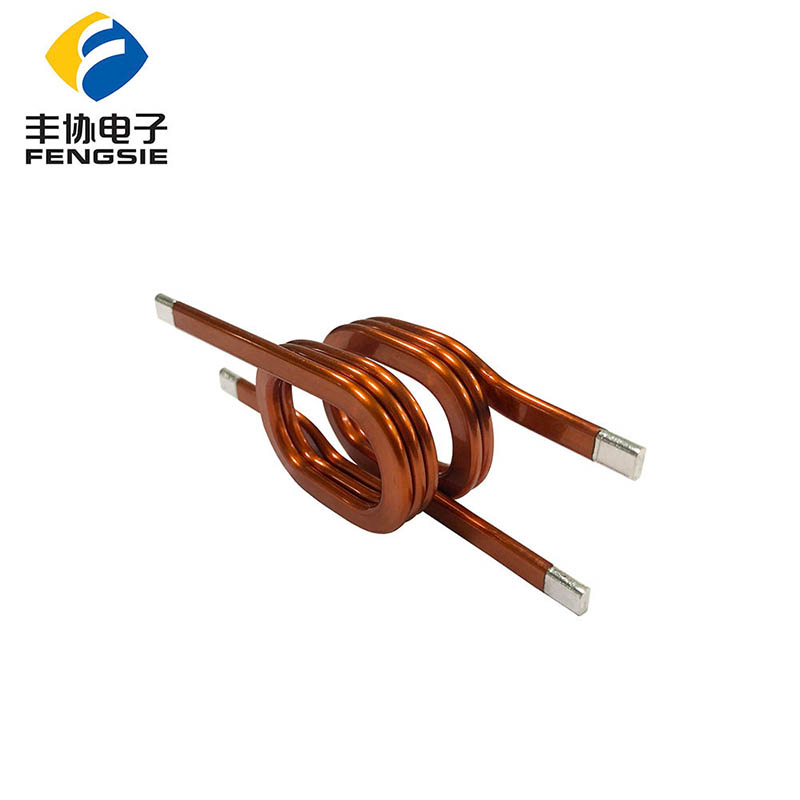

Power Supply Flat Wire Coil
Key Specifications:
1. Core Dimensions: 2.0×4.0×13×22 mm
2. Overall Size: 48×9×23 mm
3. Turn Count: 2.75TS
4. Operating Temperature Range: -40℃ to +125℃
Features:
1. Flat Wire Technology: Provides superior heat dissipation and reduced AC resistance for high-efficiency performance
2. Wide Temperature Range: Ensures stable operation across environments from -40℃ to +125℃
3. Low-Profile Design: Slim 9mm height enables compact integration into space-constrained power modules
4. Precision Multi-Layer Winding: Optimized 2.75-turn structure delivers high current capacity with minimal losses
Applications:
1. High-Density Power Supplies
2. Server & Telecom Power Systems
3. Industrial DC-DC Converters
4. LED Driver Circuits
5. Medical Power Equipment
