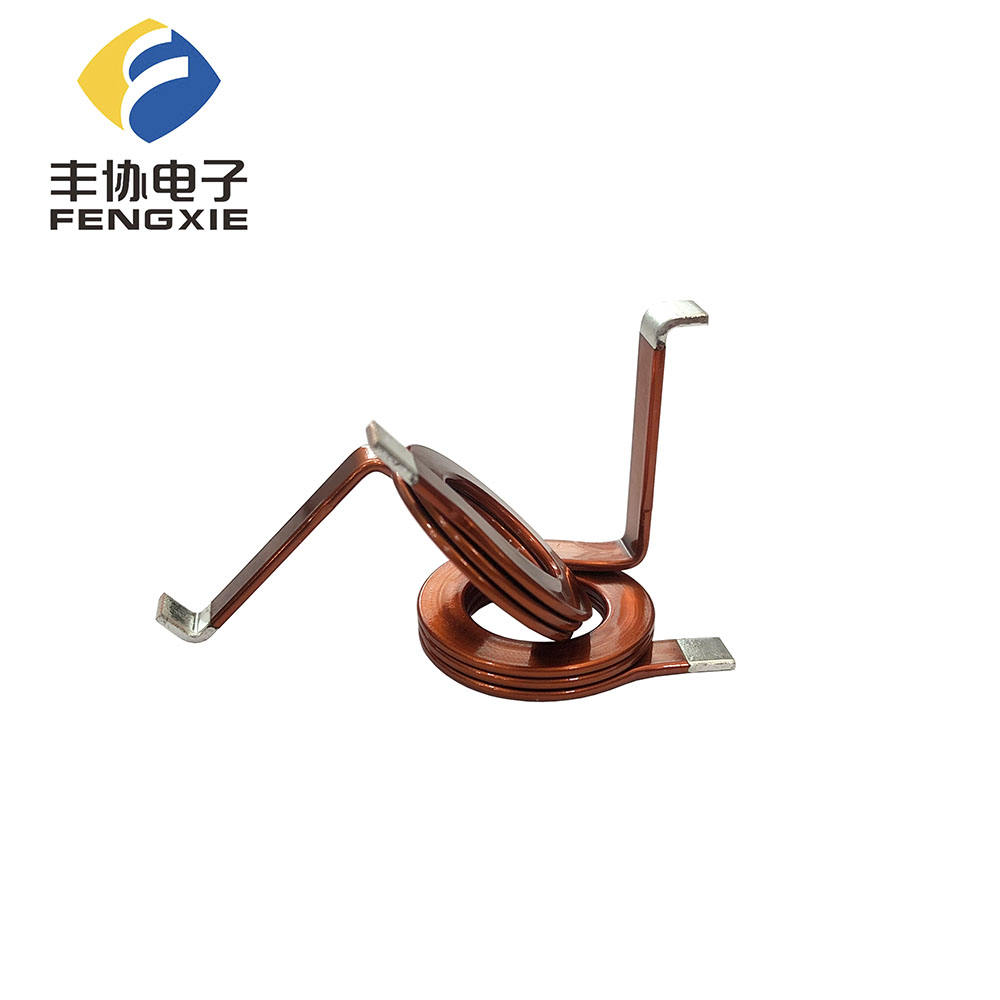

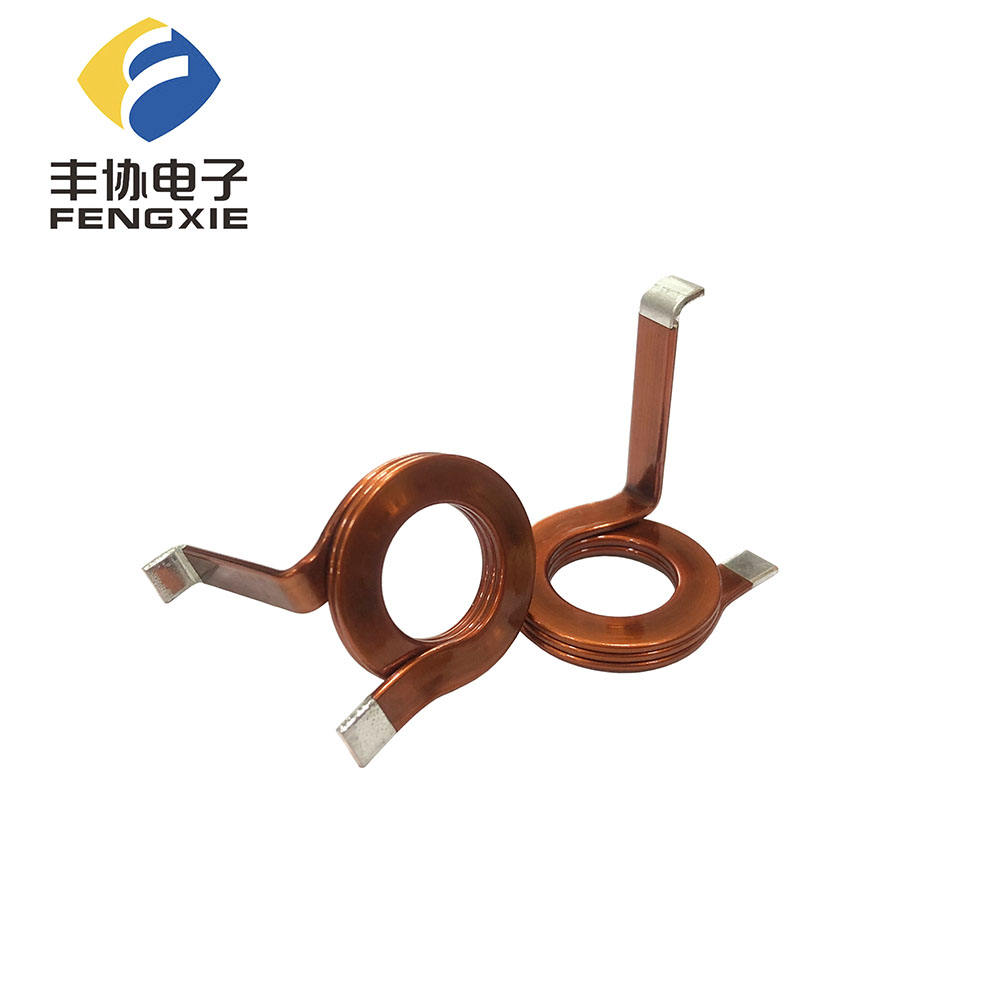

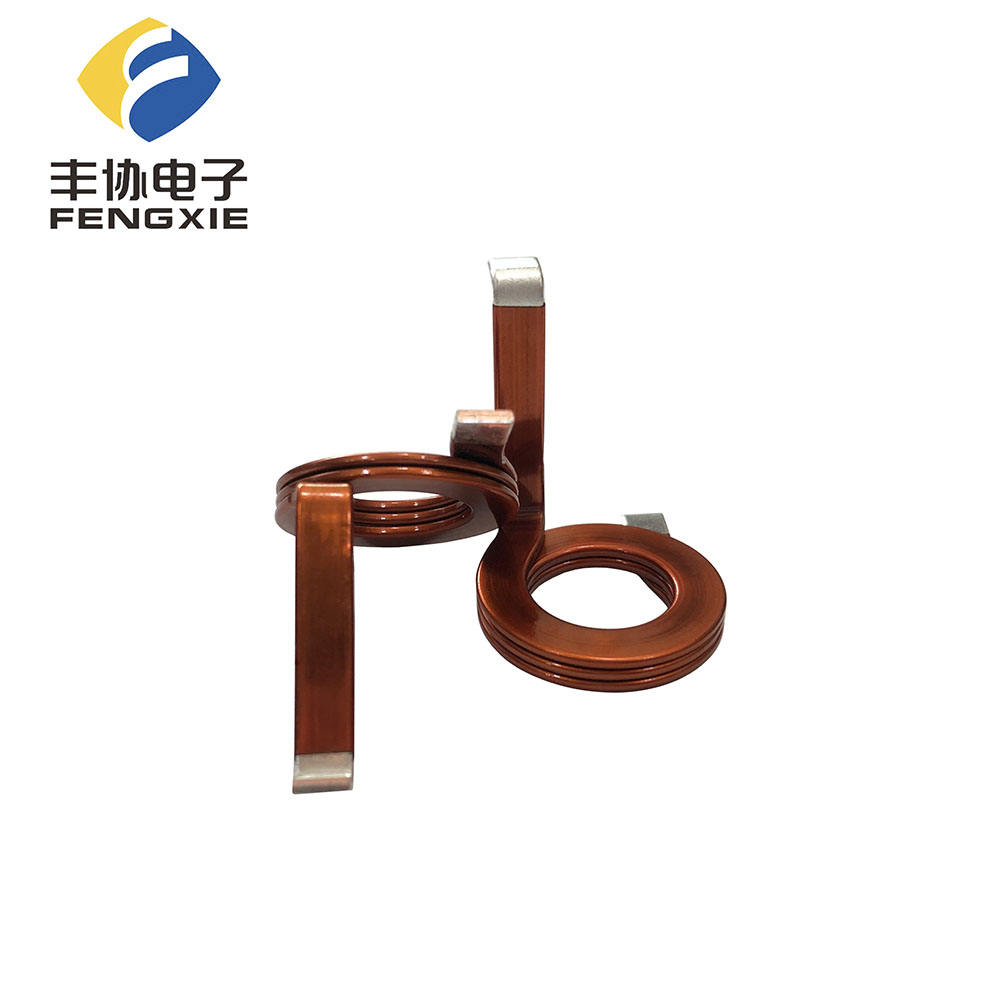

Planar transformer Flat Wire Coil
Key Specifications:
1. Core Dimensions: 1.2×5.0×14 mm
2. Overall Size: 30×30×24 mm
3. Turn Count: 2.75 Turns
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. Planar Flat Wire Design: Enables low-profile construction and excellent thermal dissipation for high-frequency applications
2. Extended Temperature Stability: Guarantees reliable operation in extreme conditions from -45℃ to +125℃
3. High Power Density: Compact footprint delivers superior performance in minimal space
4. Precision Winding Structure: Optimized 2.75-turn configuration ensures minimal AC losses and enhanced magnetic efficiency
Applications:
1. High-Frequency Planar Transformers
2. Switch-Mode Power Supplies
3. DC-DC Converter Modules
4. Telecommunications Equipment
5. Renewable Energy Systems
