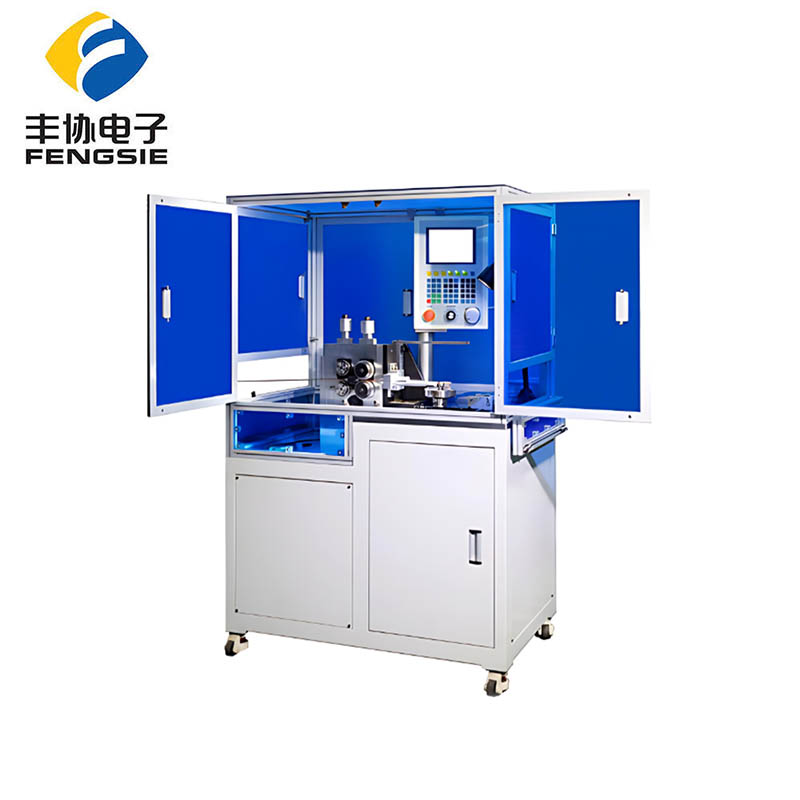

Professional High-quality OEM Edgewise Winding Machine Custom New York Factory-Fengxie

1.High-Precision Servo Control System: Equipped with an industrial-grade control platform and imported servomotors with planetary reducers,ensuring, high efficiency, accuracy, and stability duringoperation.
2.Six-Axis Motion Design: lncludes feeding axis, winding axis units, Each axis is independently controlled and worksin coordination to perform complex formingtasks.
3.Multiple Winding Modes and Coil Shapes: Supports clockwise/counterclockwise winding, dense winding, variablepitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.
4.Quick Changeover and Efficient Setup: Tooling change allows for different wire specifications; machine parameterscan be saved and quickly recalled for fast model switching and reduced setup time.

Model	FX-230F
Processing Capacity	Thickness : 0.5mm ≤ T ≤ 3.0mm Width : 2.0mm ≤ W ≤ 10.0mm S=W*T≤ 30mm²
Winding Direction	Right and Left Winding
Max Coil Height	≤100mm
Wire Feeding Motor Power	2.7KW
Winding Motor Power	2.75KW
Dimension(LxWxH)	1050X680X1750(mm³)
Weight	500kg
