How does a PV inverter air-core inductor achieve a significant reduction in high-frequency losses?
Publish Time: 2025-11-12
Driven by the "dual carbon" goal, photovoltaic power generation is becoming a core force in the global energy structure transformation at an unprecedented pace. As a key device for energy conversion in photovoltaic systems, the efficiency of the photovoltaic inverter directly determines the power generation revenue of the entire power plant. Inside the inverter, the power inductor—especially the PV inverter air-core inductor under high-frequency operating conditions—has a decisive impact on the overall system losses. With the widespread adoption of wide-bandgap semiconductor devices, the switching frequency of photovoltaic inverters has generally increased to over 50kHz, and even exceeded 100kHz. Against this backdrop, traditional ferrite or magnetic powder core inductors are no longer adequate due to the dramatic increase in core losses. The PV inverter air-core inductor, with its advantages of no hysteresis, no eddy currents, and no saturation risk, is gradually becoming the new favorite in high-frequency photovoltaic inverter design."Air core" does not mean "lossless." Under high-frequency, high-current conditions, the PV inverter air-core inductor still faces significant copper loss problems, mainly due to the skin effect and proximity effect. Effectively suppressing these high-frequency losses has become a key technical bottleneck in improving the efficiency of photovoltaic inverters.I. The Root Causes of High-Frequency Losses: Skin Effect and Proximity EffectAt low frequencies, the current is uniformly distributed across the conductor's cross-section. However, when the frequency rises to tens of kHz or higher, the alternating magnetic field induces eddy currents inside the conductor, forcing the current to concentrate at the conductor surface—the skin effect. This results in a reduction in the effective cross-sectional area of the conductor, and the AC resistance is significantly higher than the DC resistance. For example, at 100 kHz, the effective conductive layer thickness of a 1 mm diameter round copper wire is only about 0.2 mm, with a utilization rate of less than 20%.Even more serious is the proximity effect: when multiple turns of coil are closely arranged, the alternating magnetic fields generated by adjacent wires interfere with each other, further distorting the current distribution and causing localized hot spots and additional losses. In traditional air-core inductors wound with round copper wire, these two effects superimpose, making high-frequency copper losses potentially 3–5 times that of DC losses, severely limiting inverter efficiency.

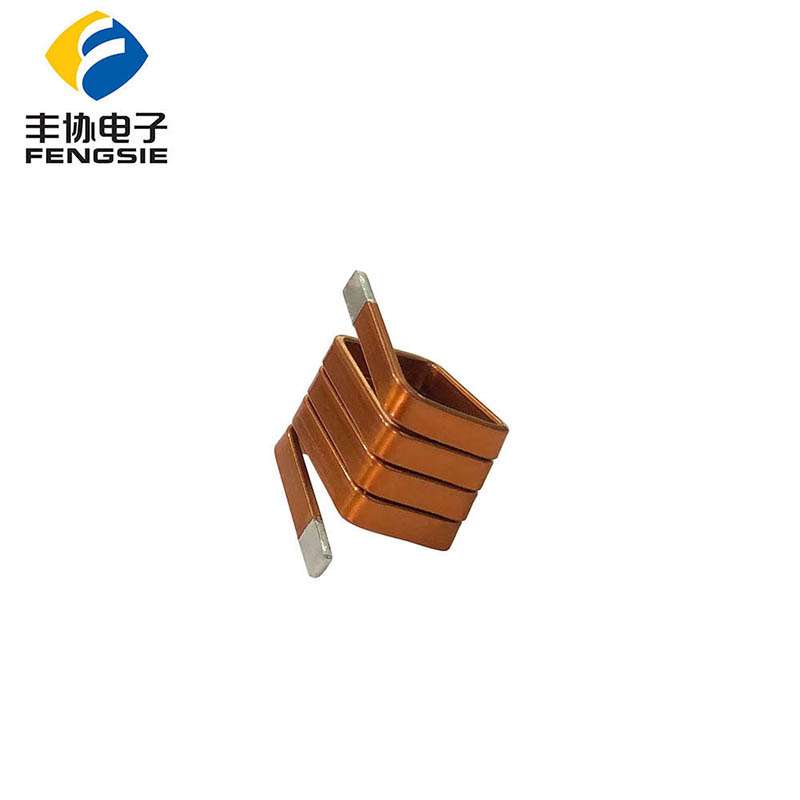

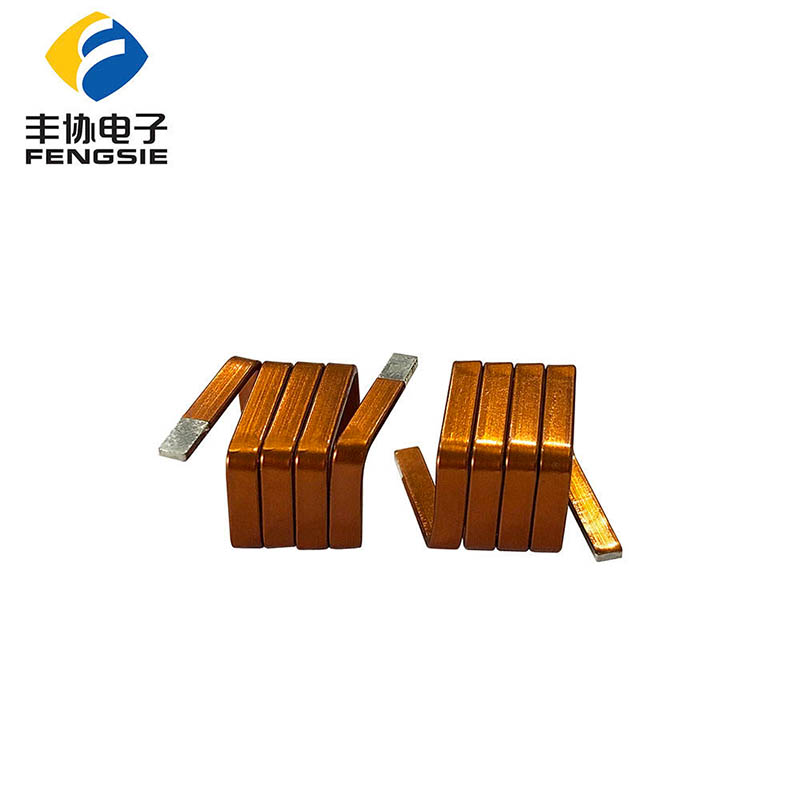

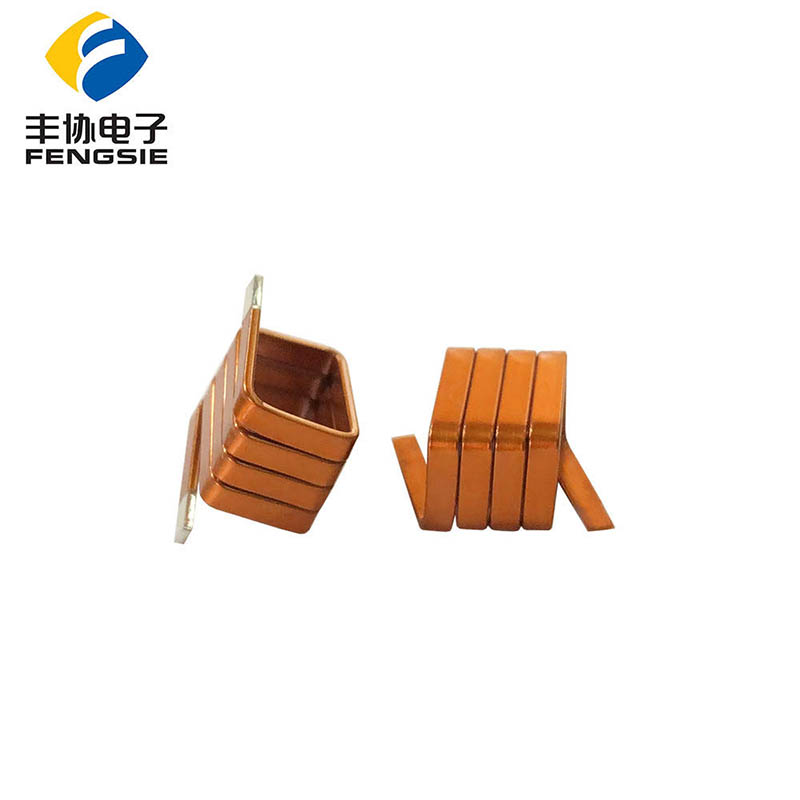

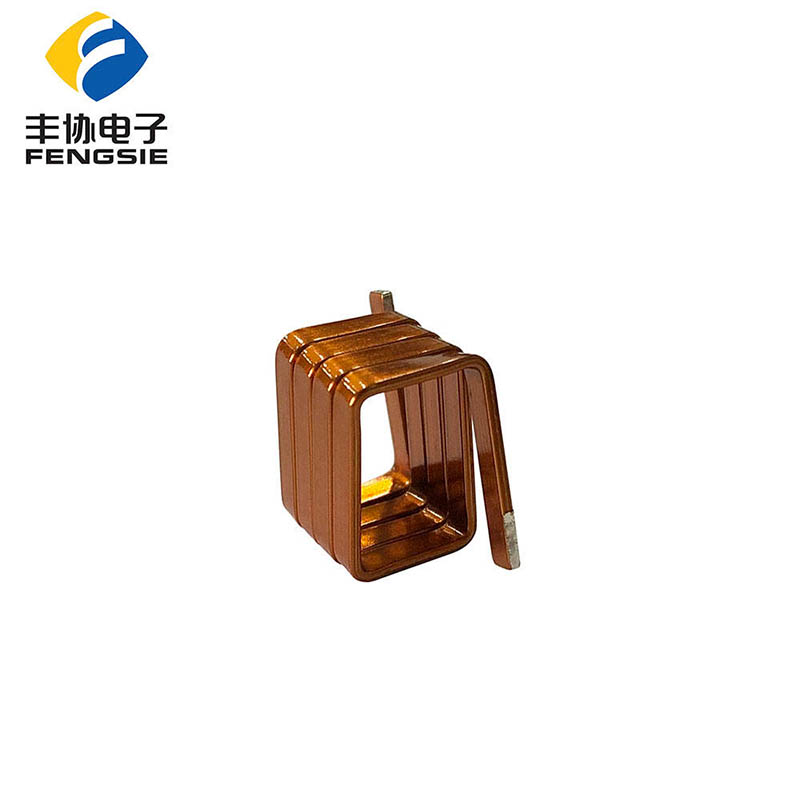

II. Fat Wire Coil: A Revolutionary Shift from "Round Wire" to "Flat Wire"To address the challenges mentioned above, the industry has widely adopted flat copper wire power inductor designs, with Fat Wire Coil technology standing out. Fat Wire refers to a copper conductor with a high aspect ratio, typically rectangular or rectangular in cross-section. Compared to traditional round wire, Fat Wire offers three core advantages in high-frequency applications:1. Maximizing Surface Area/Volume Ratio, Mitigating Skin EffectThe flat structure of Fat Wire allows for a larger perimeter within the same cross-sectional area, enabling current to flow along two wide surfaces, significantly increasing the effective conductive path. Experiments show that at an operating frequency of 80kHz, a copper flat wire coil photovoltaic using 2mm × 0.8mm flat copper wire has an ACR of only 45% of that of a round wire with the same cross-sectional area, reducing high-frequency losses by over 50%.2. Tight Stacking, Reducing Proximity Effect InterferenceFat Wire allows for near-seamless interlayer stacking, greatly reducing inter-turn gaps and lowering leakage inductance while also reducing magnetic field distortion caused by air gaps. By optimizing the winding process, such as employing a multilayer coil solar inverter structure, the current directions of each layer can be alternated, partially offsetting adjacent magnetic fields and further suppressing losses.3. Excellent heat dissipation performance, increasing power densityFlat copper wires have a larger contact area with the heat sink or casing, resulting in a shorter heat conduction path. Within the compact space of a photovoltaic inverter, flat wire toroidal inductors or planar spiral inductors can be directly mounted on aluminum heat sinks, reducing temperature rise by 10–15°C. This not only extends device lifespan but also enables higher power density designs.III. Typical Applications of Fat Wire Coils in Photovoltaic InvertersCurrently, fat wire air-core inductors are widely used in the following key applications:DC-Link Filter Inductor: Used to smooth DC bus ripple, requiring low loss and high reliability;Boost Inductor: Handles energy transfer in the MPPT circuit of string inverters, and is extremely sensitive to efficiency under high-frequency switching;Output EMI Filter Choke: As a high-frequency choke coil inverter, it suppresses high-frequency noise and ensures grid-connected power quality;Energy Storage System Coupling Inductor: In integrated photovoltaic and energy storage systems, the energy storage inductor (PV) needs to balance bidirectional energy flow and high efficiency.Taking a 100kW string photovoltaic inverter as an example, if its boost inductor uses a traditional round-wire air-core design, the copper loss at full load is approximately 85W; however, after switching to a powerinductor flat wire PVinverter solution, the loss is reduced to 38W, the overall efficiency is improved by 0.47%, and the annual power generation can be increased by approximately 400kWh, resulting in significant economic benefits. IV. Future Trends: Collaborative Optimization of Materials, Structure, and IntelligenceDespite the significant achievements of Fat Wire technology, the industry continues to explore optimal solutions:Composite conductor materials: Doping copper with trace amounts of silver or graphene improves conductivity and creep resistance; Irregular cross-section designs: Such as L-shaped and U-shaped flat wires, further optimizing magnetic field distribution;3D-printed windings: Achieving inductive choke photovoltaics with complex geometries, reducing errors from manual winding;Integrated temperature sensing: Embedding optical fibers or NTCs within flat wire coil solar energy enables real-time loss monitoring and dynamic frequency adjustment.Furthermore, as photovoltaic inverters develop towards 1500V high voltage, modularity, and lightweight designs, higher requirements are placed on the mechanical strength, insulation level, and vibration resistance of photovoltaic inverter coils. Fat Wire, with its structural rigidity and customizability, is expected to play a more central role in next-generation high-efficiency inverters.In the photovoltaic era, which pursues ultimate efficiency, every watt of loss reduction translates to more green electricity production. Although the air-core inductor of a PV inverter lacks a magnetic core, it bears the "invisible weight" of energy conversion. Through the in-depth application of Fat Wire Coil technology—from material innovation in flat copper wire power inductors to structural optimization of multilayer coil solar inverters—PV inverters are achieving a qualitative leap in high-frequency loss control.
