A Guide to Inductor Coils: The "Guardians of Energy" in the Electromagnetic World
Publish Time: 2025-11-05

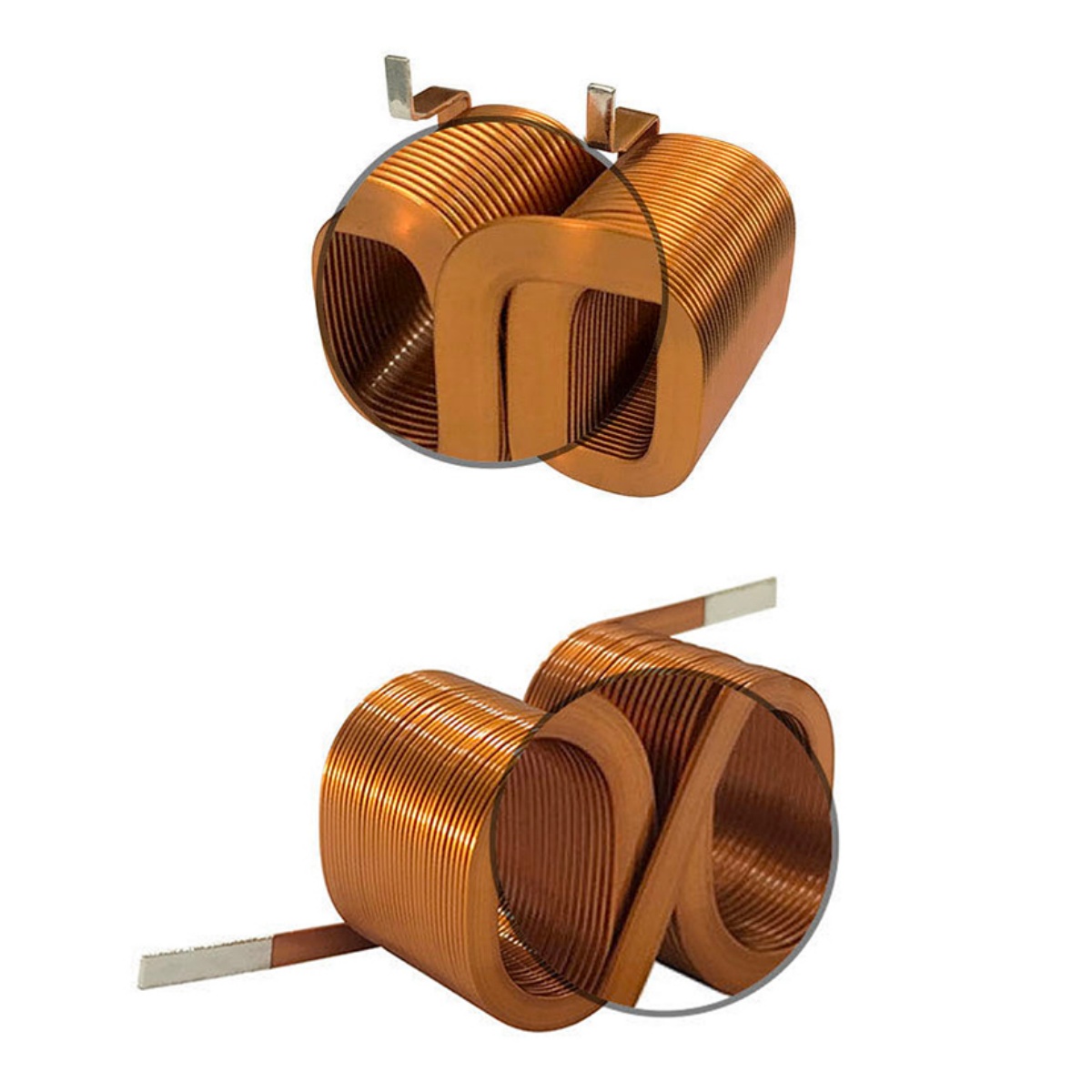

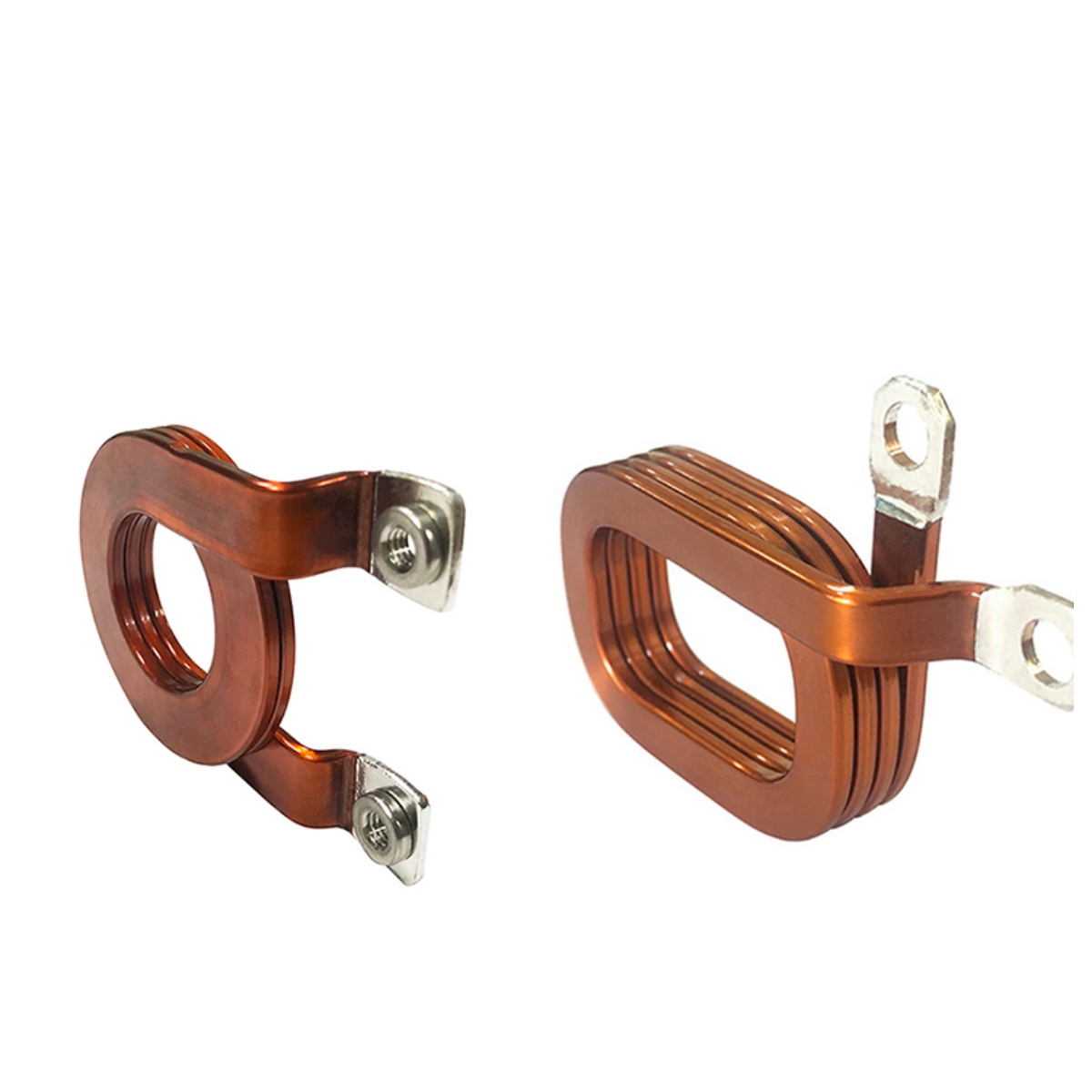

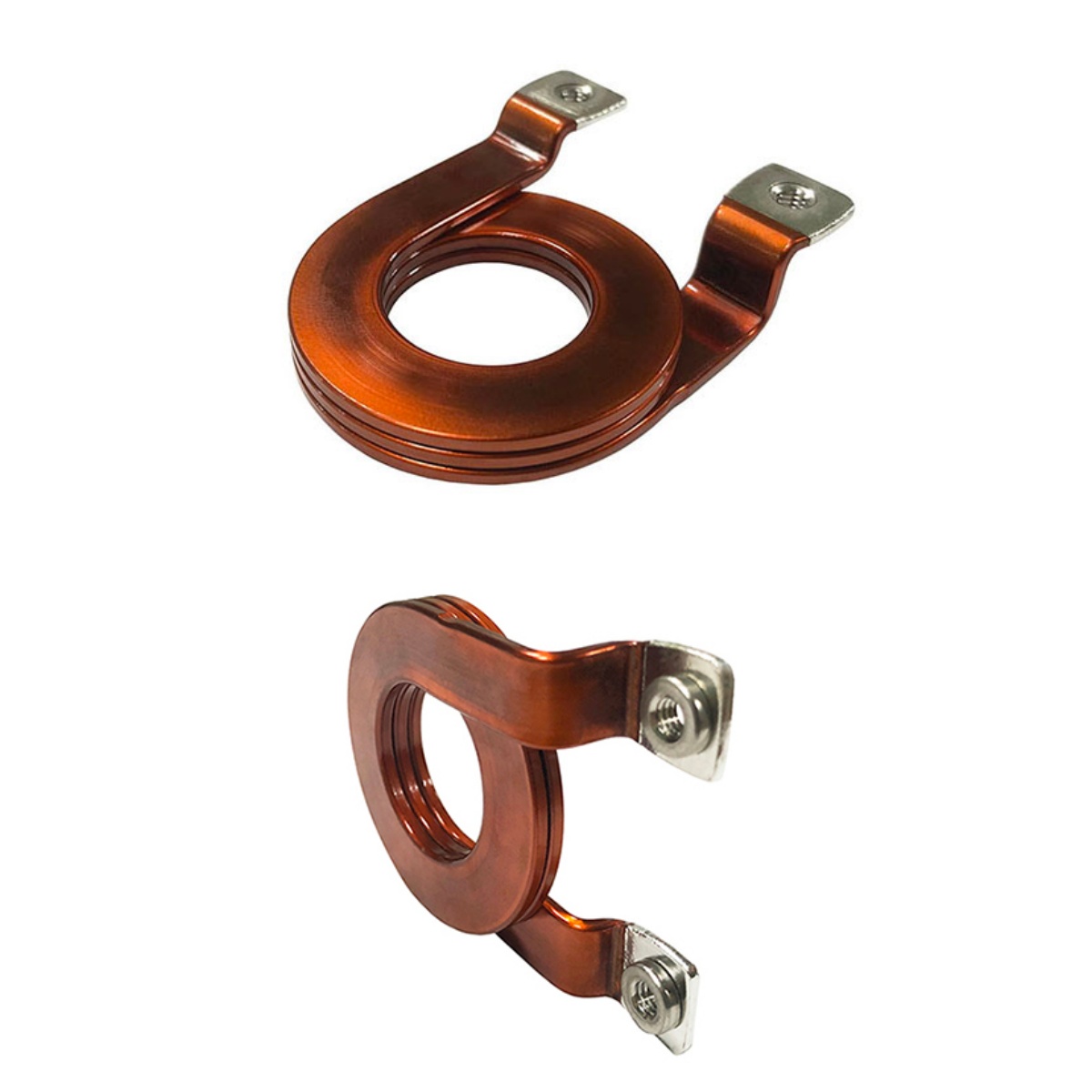

In the vast and intricate realm of electronic circuits, there exists a component that often goes unnoticed yet is omnipresent—the inductor coil. Like a silent sentinel, it meticulously regulates current flow, safeguarding the stability of circuits. From household appliances to cutting-edge technological marvels, and spanning applications from rudimentary power supply filtering to sophisticated radio frequency communication, the inductor coil plays an absolutely indispensable role. I. Inductor Coils: The Product of Electromagnetic InductionThe Inductor Coil, a masterpiece among electronic components, is meticulously wound from insulated wire. Its birth stems from humanity's profound insight into and clever application of the phenomenon of electromagnetic induction. In the 19th century, scientists like Faraday discovered the law of electromagnetic induction, revealing the principle that a changing magnetic field can generate an electromotive force (EMF). When wire is wound into a coil shape, it acquires a remarkable ability – to store magnetic field energy using the principles of electromagnetic induction. This characteristic allows the Inductor Coil to play a unique role in electronic circuits.The core appeal of the Inductor Coil lies in its self-induction phenomenon. When current flows through the coil, it generates a magnetic field. This changing magnetic field, in turn, induces a self-induced EMF within the coil itself. The direction of this self-induced EMF always opposes the change in current, acting like an invisible "resistance" that slows down the rate of current change. In simple terms, the Inductor Coil is like a master of "inertia"; it tends to maintain a stable current flow, suppressing any sudden changes. For instance, when a circuit is suddenly switched on or off, the Inductor Coil generates a back EMF, preventing the current from spiking or dropping instantaneously, thereby protecting other components in the circuit from damage. This characteristic allows the Inductor Coil to act as a "current stabilizer" in circuits.II. The Unique Properties of Inductor CoilsThe uniqueness of Inductor Coils is also evident in their different behaviors towards direct current (DC) and alternating current (AC). For DC, the Inductor Coil presents almost "zero resistance," like a wide-open highway allowing DC to pass unimpeded. This is because DC has a constant direction and does not produce a changing magnetic flux within the coil, thus no self-induced EMF to oppose it, allowing DC to pass through easily.However, for AC, the Inductor Coil becomes "selective," presenting significant inductive reactance that impedes the flow of AC. The constantly changing direction of AC current causes the magnetic flux in the coil to change continuously, thereby generating a self-induced EMF. This self-induced EMF opposes the change in the AC, creating a hindering effect. The magnitude of the inductive reactance is related to the frequency of the AC and the inductance value of the coil; higher frequency or greater inductance results in greater inductive reactance. This characteristic of "allowing DC to pass while impeding AC" gives the Inductor Coil a "selective passage" capability in circuits, enabling it to filter and process different types of current according to the circuit's needs.III. The Diverse Applications of Inductor CoilsThese unique properties of Inductor Coils lead to their widespread use in electronic circuits. From filtering to oscillation, voltage conversion to RF circuit matching, and even in the sensor field, Inductor Coils play pivotal roles.(1) The "Filtering Agent" in FilteringIn power supply circuits, Inductor Coils are often used together with capacitors to form filter circuits. Their role is like that of a "filtering agent," removing ripple and noise from the power supply to provide a stable, clean DC source. When AC ripple is present in the power supply, the Inductor Coil presents inductive reactance to it, hindering the passage of the AC component, while the capacitor shunts the AC component to ground. Through the synergistic action of the Inductor Coil and capacitor, current variations are smoothed out, resulting in a more stable output voltage. For example, in smartphone chargers, the Inductor Coil in the filter circuit effectively removes high-frequency noise from the power supply, ensuring the phone battery receives a stable charging voltage, improving charging efficiency and safety.(2) The "Heartbeat" of Oscillator CircuitsIn oscillator circuits, Inductor Coils work alongside capacitors to form LC resonant circuits. The energy exchange between them is like an endless "dance," generating periodic oscillating signals. The Inductor Coil stores magnetic field energy, the capacitor stores electric field energy, and they convert energy back and forth, creating stable oscillations. These oscillating signals play a key role in fields like radio communication and clock circuits. In radio transmitters, the high-frequency signal generated by the LC oscillator circuit is amplified and transmitted via the antenna, enabling wireless signal transmission. In computer clock circuits, the oscillating signal provides a precise timing reference for various components, ensuring the computer operates correctly.(3) The "Bridge" for Voltage ConversionIn transformers, Inductor Coils truly shine. Utilizing the principle of electromagnetic induction, they achieve step-up or step-down voltage conversion. A transformer consists of a primary coil and a secondary coil. When the primary coil is connected to an AC power source, the AC current produces a changing magnetic field in the primary coil. This changing magnetic field cuts through the secondary coil, inducing an EMF in the secondary coil. By altering the turns ratio between the primary and secondary coils, the transformer can easily convert high voltage to low voltage or vice versa. For instance, in power transmission systems, electricity generated by power plants needs to be stepped up in voltage by transformers to reduce energy loss during transmission. At the user end, step-down transformers are needed to convert high voltage to low voltage suitable for household and industrial use. The transformer, built from Inductor Coils, becomes an indispensable "bridge" in power transmission and distribution.(4) The "Matching Master" in RF CircuitsIn radio frequency (RF) circuits, Inductor Coils play the role of "matching masters." They are used to achieve impedance matching between the transmission line and the antenna, ensuring maximum efficiency of RF signal transmission. Both transmission lines and antennas have specific impedance characteristics. If the impedances do not match, RF signals will reflect at the interface during transmission, causing signal loss. By adjusting the value of the Inductor Coil, the impedance matching point can be precisely controlled, allowing the RF signal to be transmitted to the antenna with minimal loss, thereby improving communication quality and range. In mobile communication base stations and phones, Inductor Coils in RF circuits are crucial for achieving efficient signal transmission.(5) The "Sensing Hand" in Sensors
In the field of sensors, Inductor Coils also demonstrate their unique sensing capabilities. Using the principle of electromagnetic induction, they can detect changes in magnetic fields and convert them into electrical output signals. For example, in displacement sensors, an Inductor Coil is used with a movable core. When the position of the core changes, the magnetic flux within the coil also changes, generating an induced EMF. By measuring the magnitude of this EMF, the displacement of the core can be determined. This characteristic makes Inductor Coils widely applicable in position detection, speed measurement, and flow detection. On industrial automated production lines, inductive displacement sensors can precisely measure the position and speed of objects, providing accurate data support for automated process control.IV. The "Unsung Hero": A Key Passive ComponentAs a key passive component in electronic circuits, the importance of the Inductor Coil is self-evident. It requires no external power supply yet can precisely regulate signals and energy within the circuit based on its inherent electromagnetic properties. This "passive" nature gives Inductor Coils high flexibility and reliability in circuit design. Compared to active components, passive Inductor Coils eliminate the need for an additional power supply, reducing circuit complexity and power consumption while enhancing circuit stability.In electronic circuit design, the selection and layout of Inductor Coils is a science in itself. Engineers must choose appropriate parameters like inductance value, rated current, and Q factor based on the specific circuit requirements. The inductance value determines the coil's ability to oppose current change, the rated current limits the maximum current the coil can safely handle, and the Q factor reflects the quality factor of the coil – a higher Q indicates lower losses and better performance. Simultaneously, factors like the coil's package type, mounting method, and interaction with other components must be considered. Proper layout can minimize electromagnetic interference between the Inductor Coil and other components, improving the overall performance of the circuit.V. Innovation and Development of Inductor CoilsWith continuous technological advancement, Inductor Coils are also constantly innovating and evolving. The application of new materials, the development of new processes, and the emergence of new designs provide endless possibilities for improving the performance and expanding the applications of Inductor Coils.For example, the advent of new magnetic materials like ferrites and nanocrystalline materials has significantly enhanced the energy storage density and efficiency of Inductor Coils. Ferrite materials offer advantages like high permeability and low coercivity, effectively increasing the inductance of the coil. Nanocrystalline materials feature high saturation flux density and low core loss, enabling Inductor Coils to exhibit superior performance in high-frequency, high-power applications. Concurrently, the trends towards miniaturization and integration have led to broader use of Inductor Coils in portable devices, wearables, and other fields. Using advanced manufacturing processes, Inductor Coils are integrated with other components, reducing circuit size and weight, and enhancing device portability and reliability.Furthermore, the rise of smart inductor technology injects new vitality into the development of Inductor Coils. By integrating sensors with Inductor Coils, dynamic adjustment of inductance values and real-time monitoring of circuit status can be achieved. This intelligent characteristic reveals great application potential for Inductor Coils in adaptive circuits, intelligent control systems, and other areas. For instance, in the battery management systems of electric vehicles, smart inductors can adjust their inductance based on the real-time status of the battery, optimizing the charging and discharging processes and improving battery lifespan and safety.1
Inductor Coils – Guardians of the Electromagnetic WorldThe Inductor Coil, this "guardian of energy" in the electromagnetic world, with its unique principle of electromagnetic induction and wide range of applications, has become an indispensable key component in electronic circuits. From filtering to oscillation, voltage conversion to RF matching, and sensor applications, Inductor Coils have earned the favor and trust of engineers with their excellent performance and reliable operation.In future technological developments, Inductor Coils will continue to play their unique role, contributing to the stable operation and performance enhancement of electronic circuits. As explorers and practitioners of technology, we will continually delve deeper into research and innovate applications of Inductor Coil technology, contributing more wisdom and power to human technological progress and social development. Let us look forward to Inductor Coils shining even more brightly on the stage of future technology.
