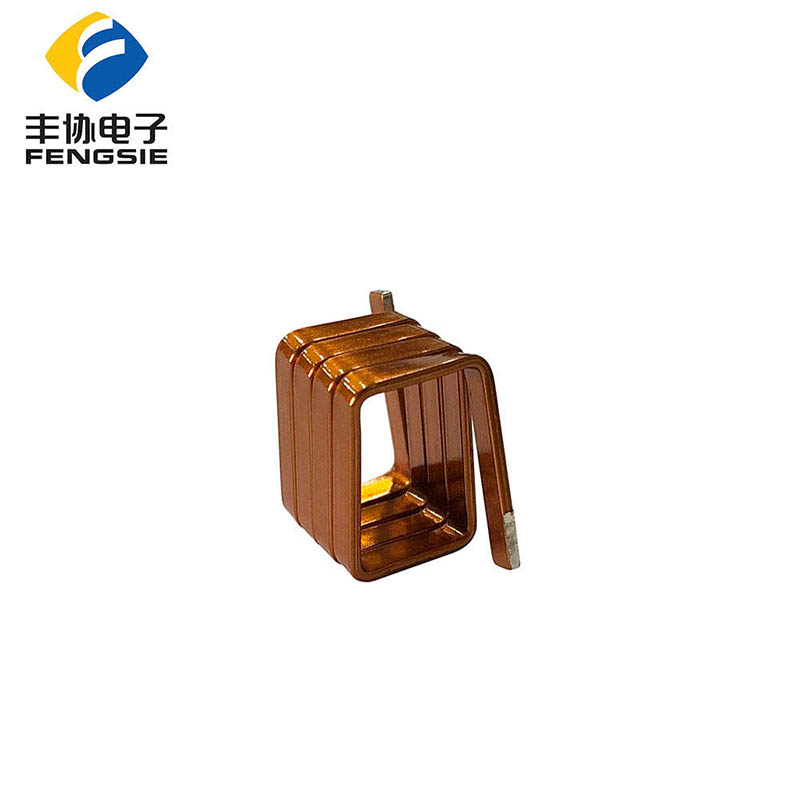

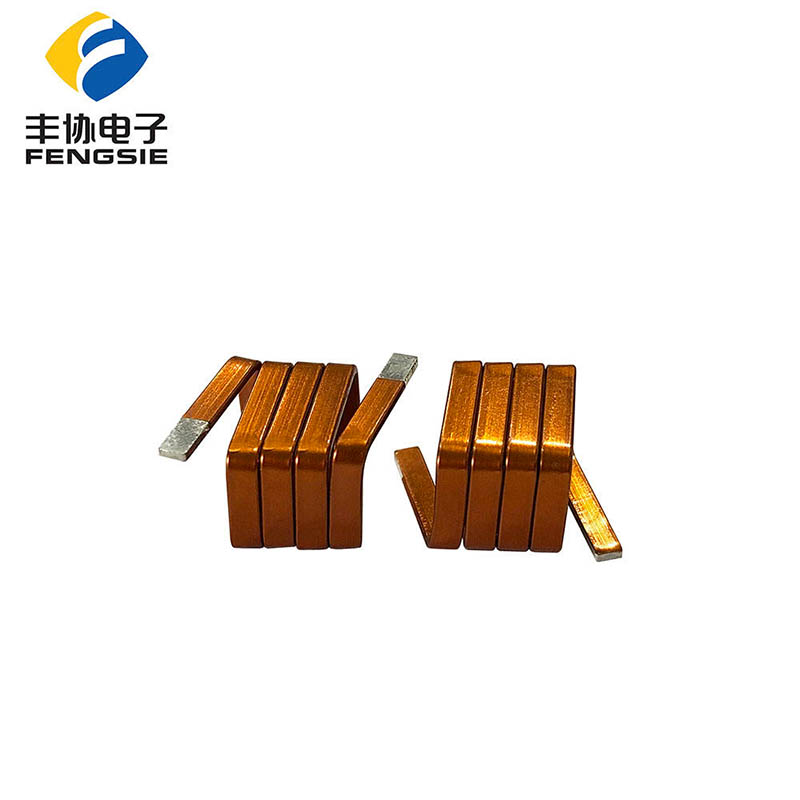

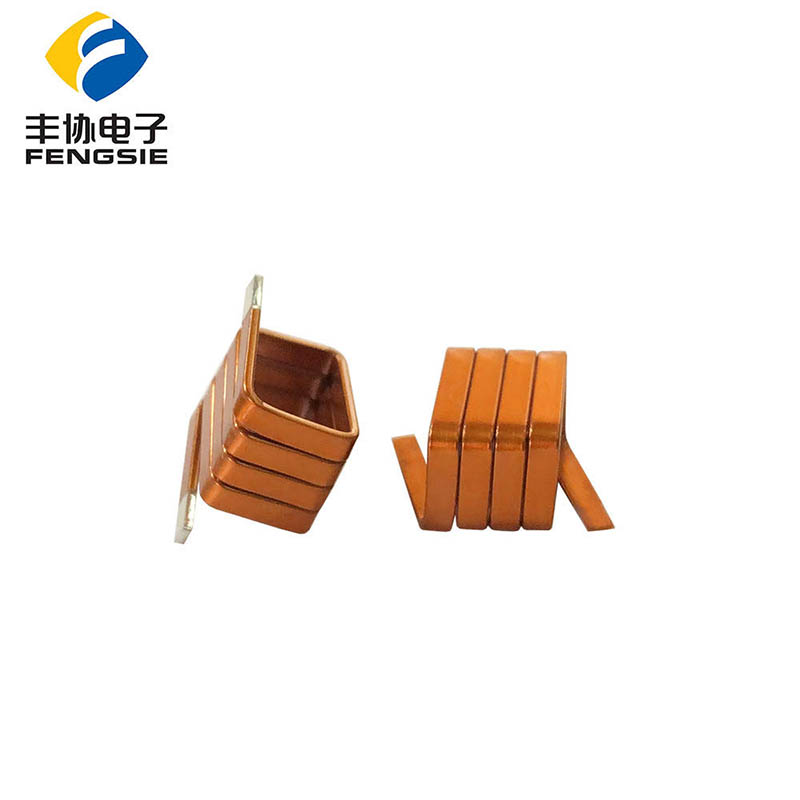

PV Inverter Air Core Inductor
Key Specifications:
1. Core Dimensions: 0.35×3.0×12.6 mm
2. Overall Size: 0.35×3.0×12.6×1 mm (Max Height: 13.5mm)
3. Turn Count: 1.75 Turns
4. Operating Temperature Range: -30°C to +220°C
1. Air Core Design: Eliminates core saturation, reduces losses, and ensures superior performance at high frequencies.
2. Extended Temperature Range: Reliable operation across extreme temperatures from -30°C to +220°C.
3. Ultra-Low Profile: Compact form factor with maximum height of 13.5mm enables space-efficient designs.
4. Precision Engineering: Optimized 1.75-turn design provides excellent current handling with minimal parasitic effects.
Applications:
1. Solar PV Inverters
2. High-Frequency Power Converters
3. Renewable Energy Systems
4. Grid-Tied Inverters
5. Energy Storage Systems
Upgrade your photovoltaic inverter designs with our air core inductor that delivers enhanced efficiency, thermal stability, and reliable performance in demanding environmental conditions.
