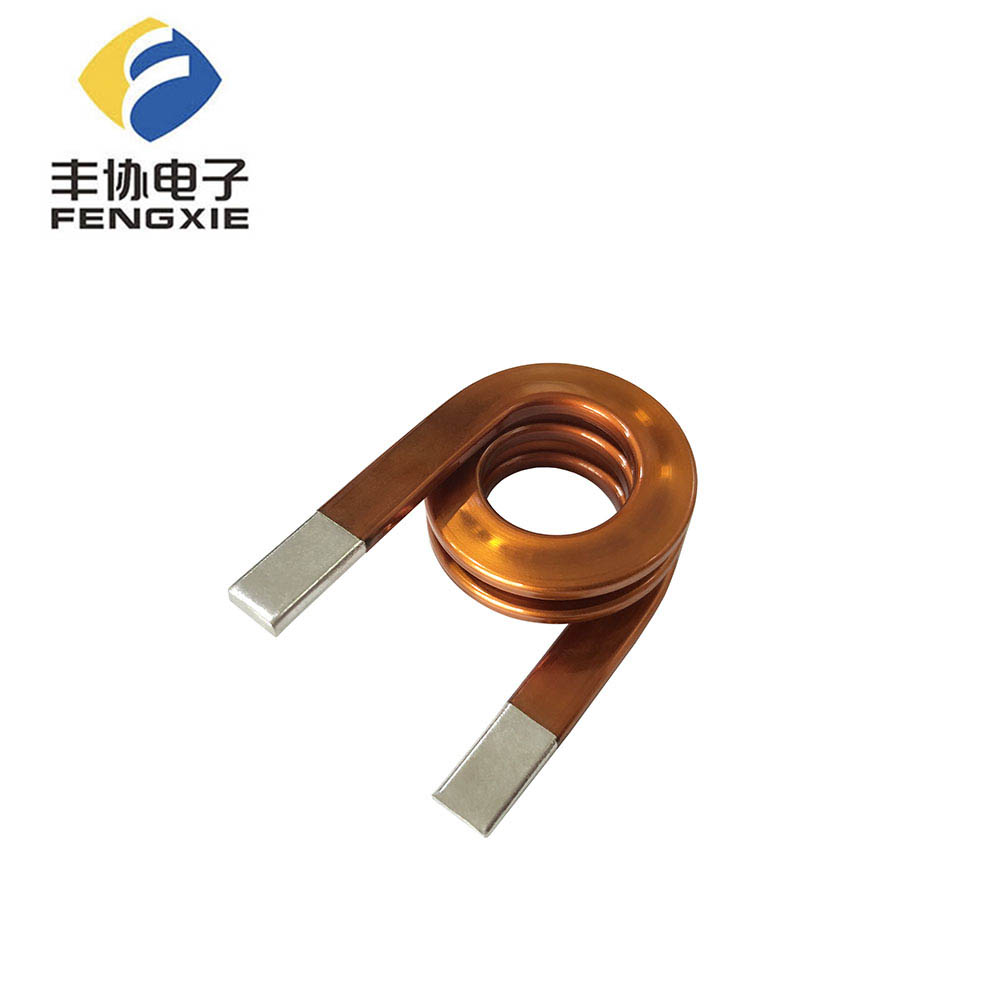

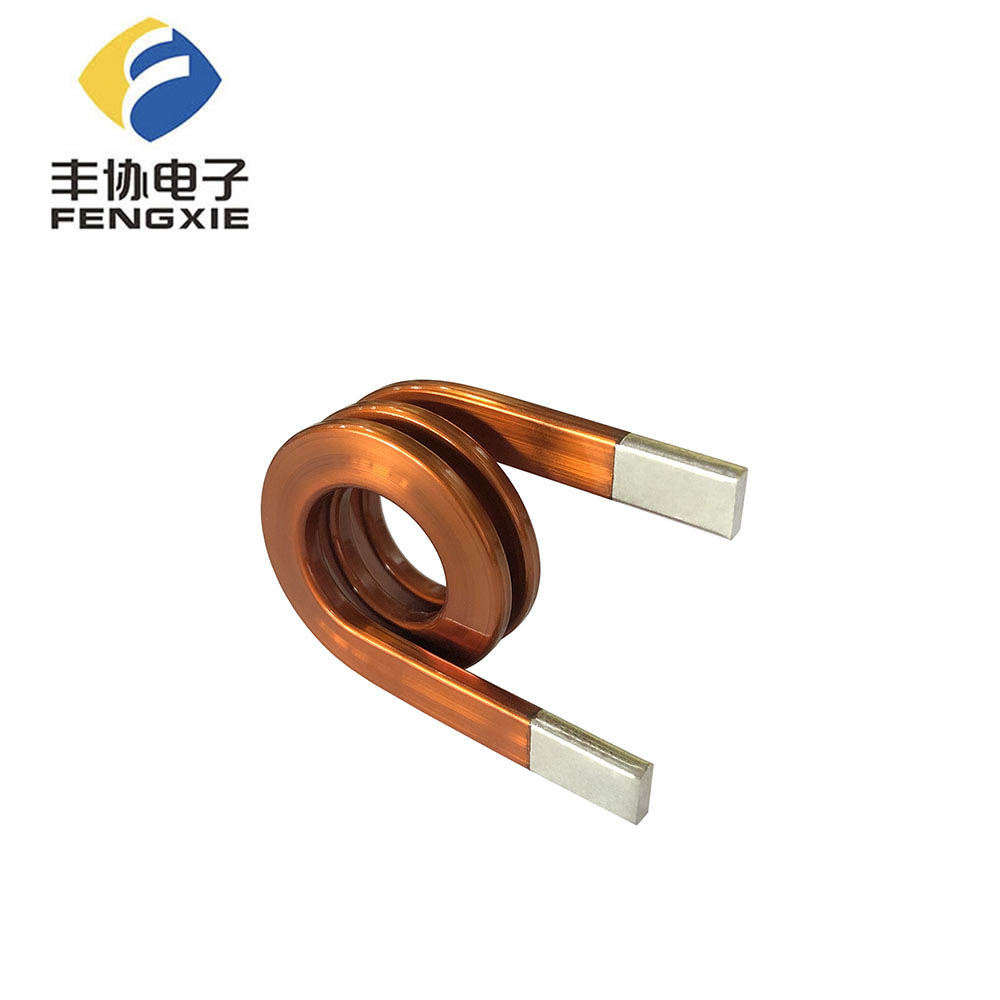

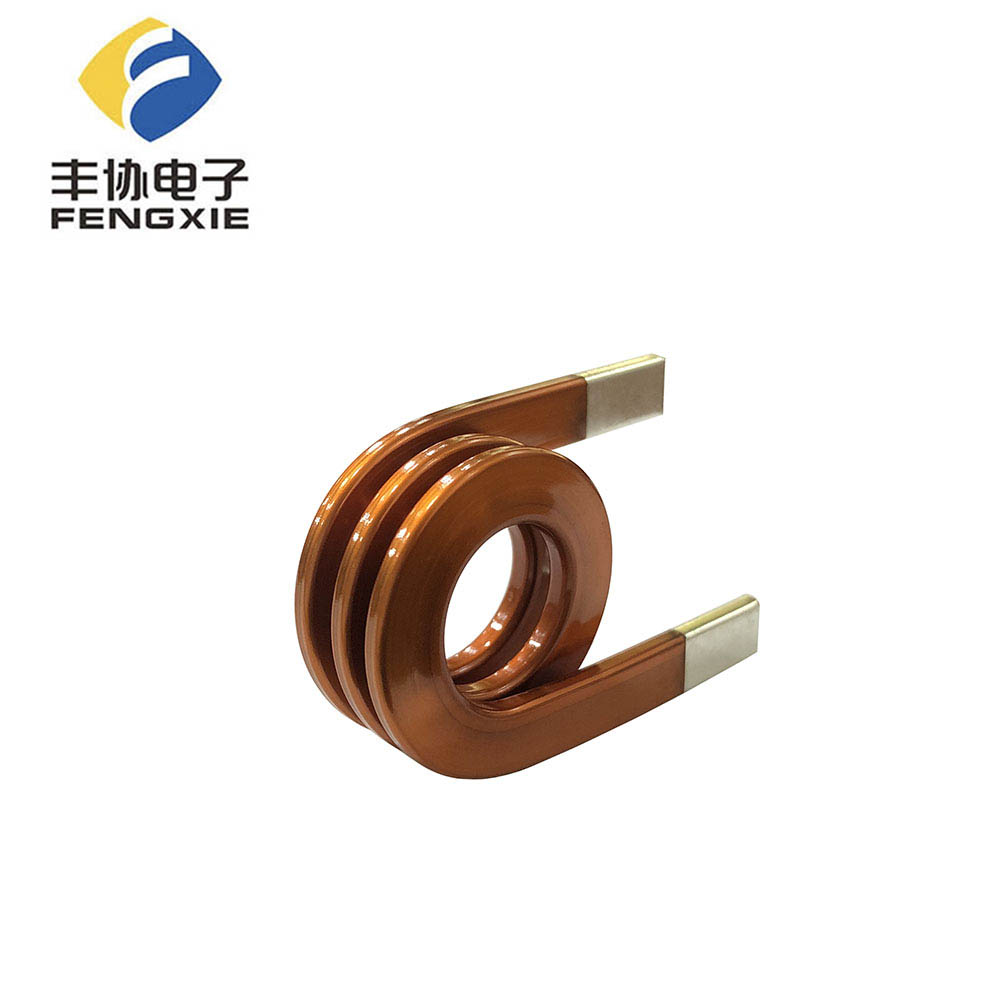

EV Charger Copper Flat Wire Coil
Key Specifications:
1. Coil Dimensions: 2.59×6.43×15.5 mm (Enameled Copper Flat Wire)
2. Overall Size: 23×46×15 mm
3. Turn Count: 2.75 Turns
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. High-Power Flat Wire Design: Engineered with rectangular enameled copper wire to maximize current density and minimize AC losses in high-frequency EV applications.
2. Extended Thermal Durability: Certified for reliable operation in extreme automotive environments, from -45℃ to +125℃.
3. Low-Profile Compact Form: Slim 15 mm height and optimized footprint allow seamless integration into space-constrained EV power modules.
4. Precision Partial-Turn Winding: Advanced 2.75-turn configuration ensures precise inductance control and excellent thermal dissipation under high current loads.
Applications:
1. Electric Vehicle On-Board Chargers (OBC)
2. Traction Inverters and Motor Drives
3. High-Voltage DC-DC Converters
4. Battery Management Systems (BMS) and Disconnect Units
5. Vehicle-to-Grid (V2G) and Bidirectional Charging Systems
