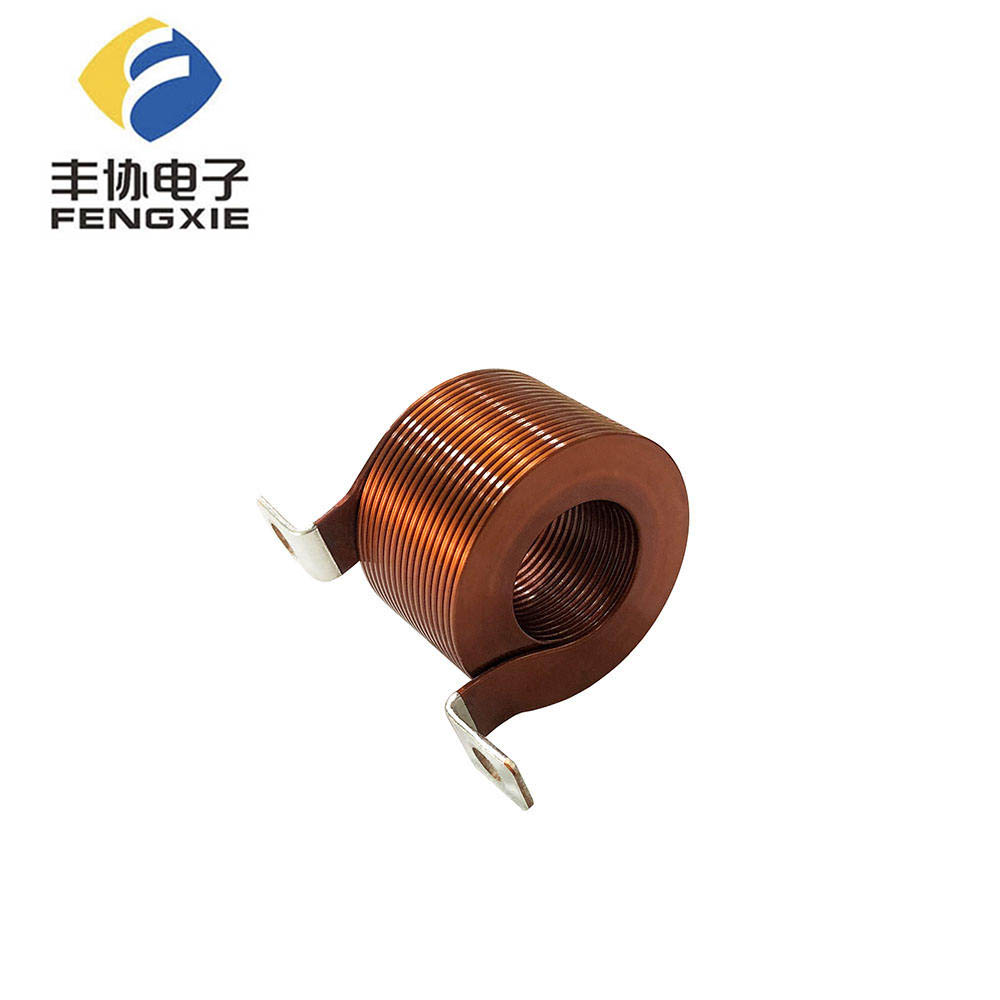

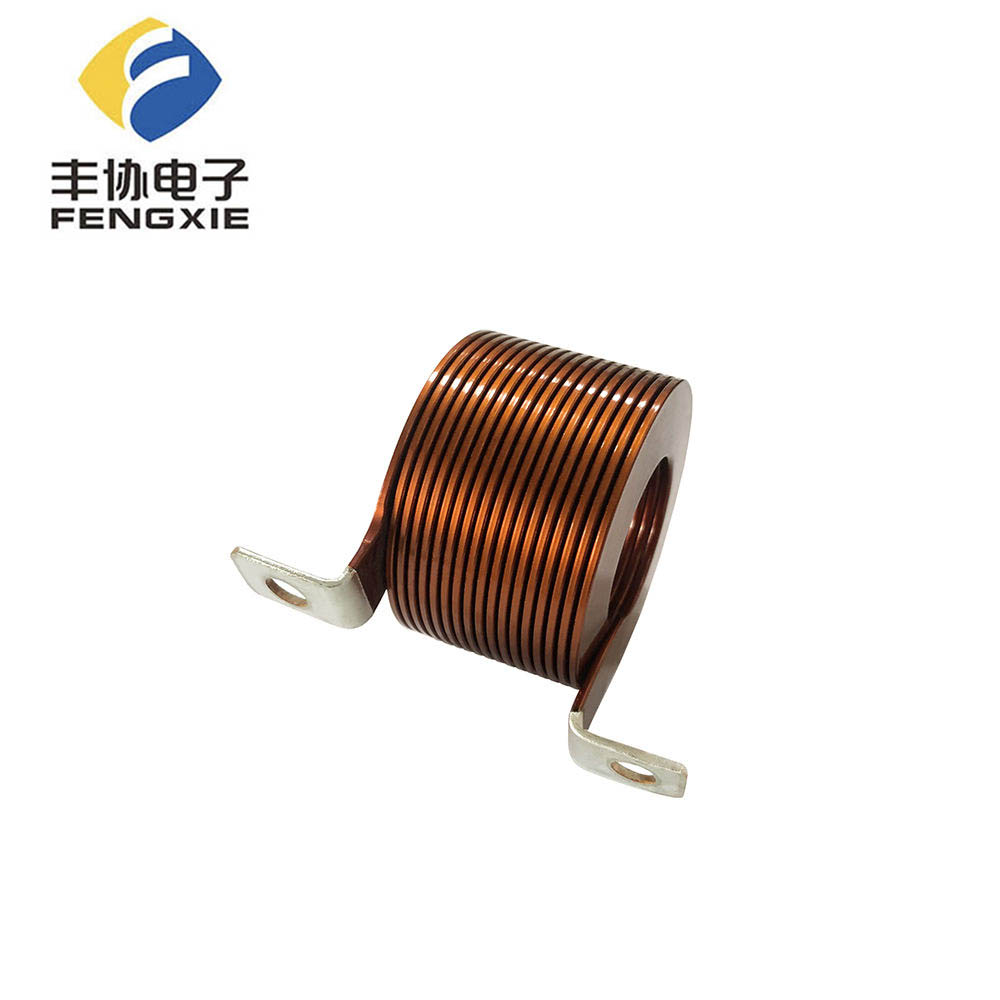

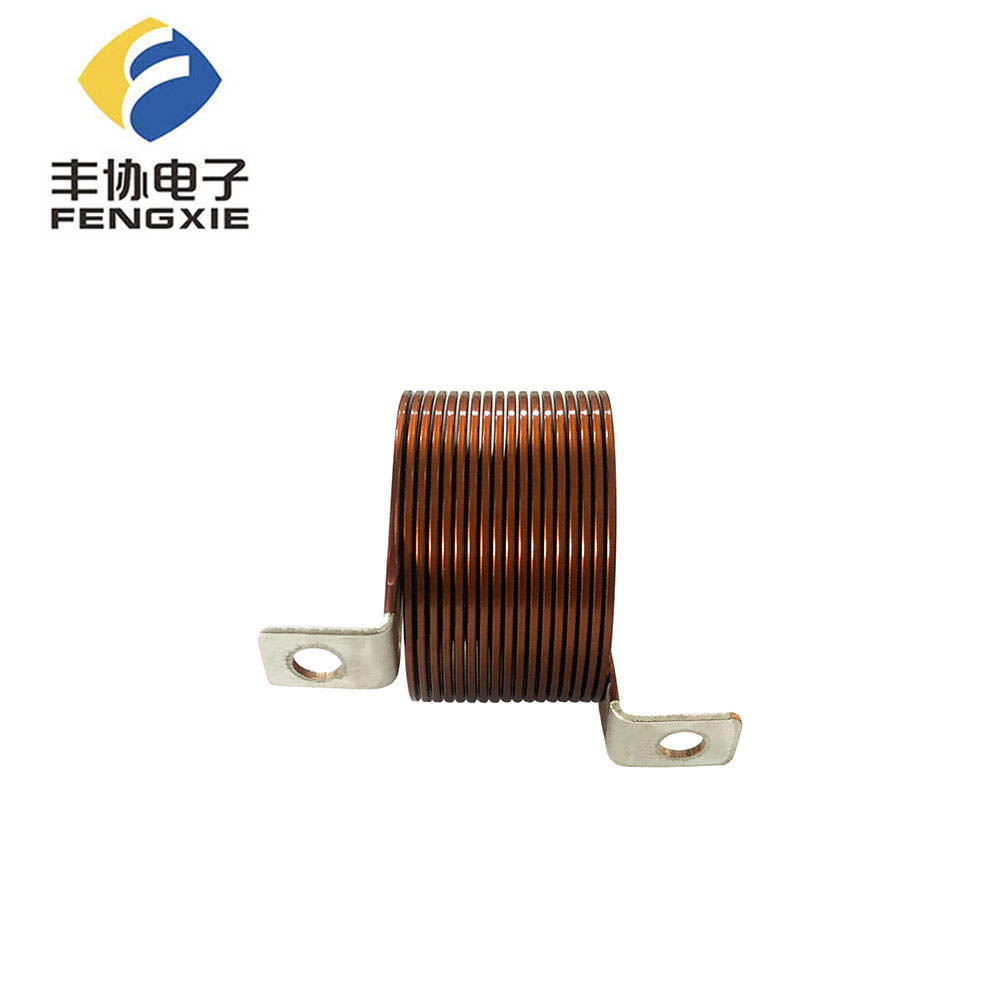

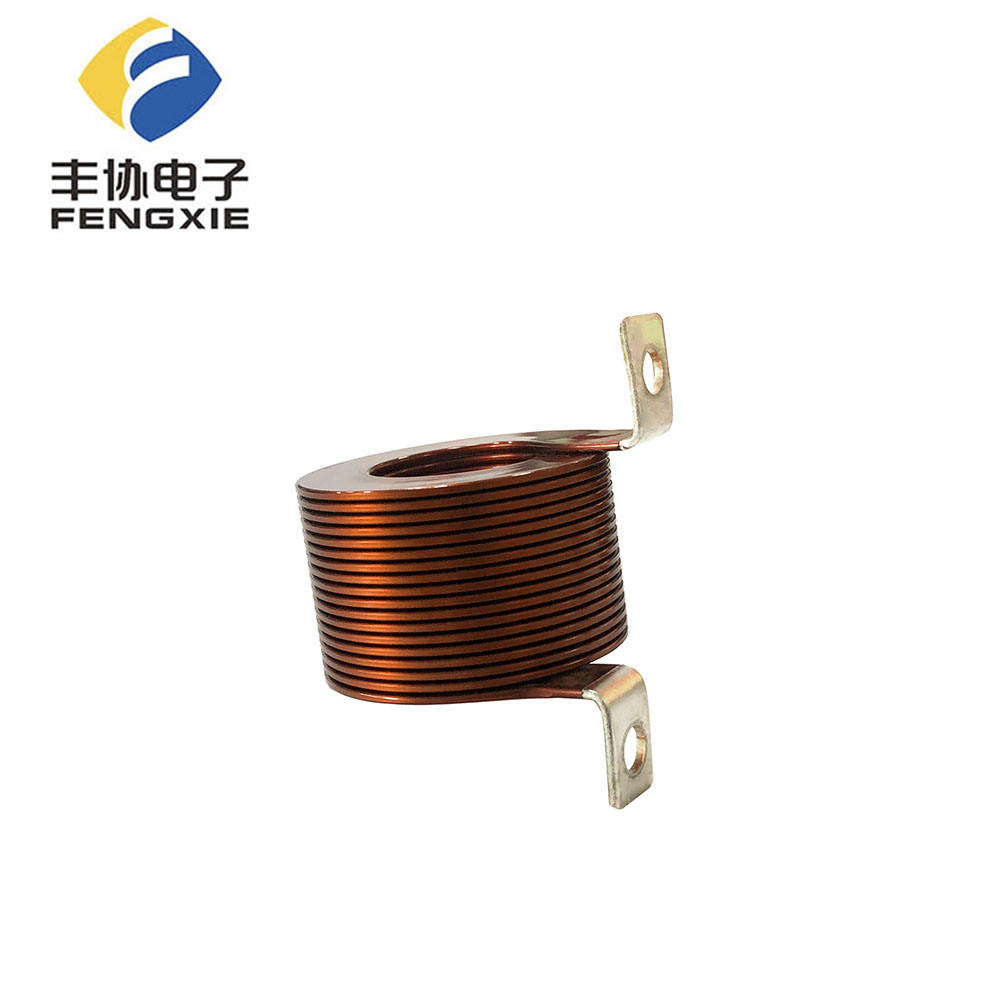

High-Current Flat Wire Coil Inductor
Key Specifications:
1. Coil Dimensions: 1.2×10×21mm (Flat Wire)
2. Overall Size: 60×40×30 mm
3. Turn Count: 17.75 Turns
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. Flat Wire High-Current Design: Enables superior current handling capacity with reduced AC resistance and enhanced heat dissipation.
2. Extended Thermal Operating Range: Maintains stable performance in extreme environments from -45℃ to +125℃, ideal for high-load applications.
3. Optimized Magnetic Structure: Precision 17.75-turn winding ensures consistent inductance and minimizes core loss under high current conditions.
4. Robust Mechanical Construction: Durable build with compact 60×40×30 mm form factor ensures reliability in vibration-prone and space-constrained systems.
Applications:
1. High-Power DC-DC Converters and SMPS
2. Electric Vehicle Powertrain and Charging Systems
3. Industrial Welding and Power Supplies
4. Renewable Energy Inverters and Storage Systems
5. Server and Data Center Power Distribution Units
