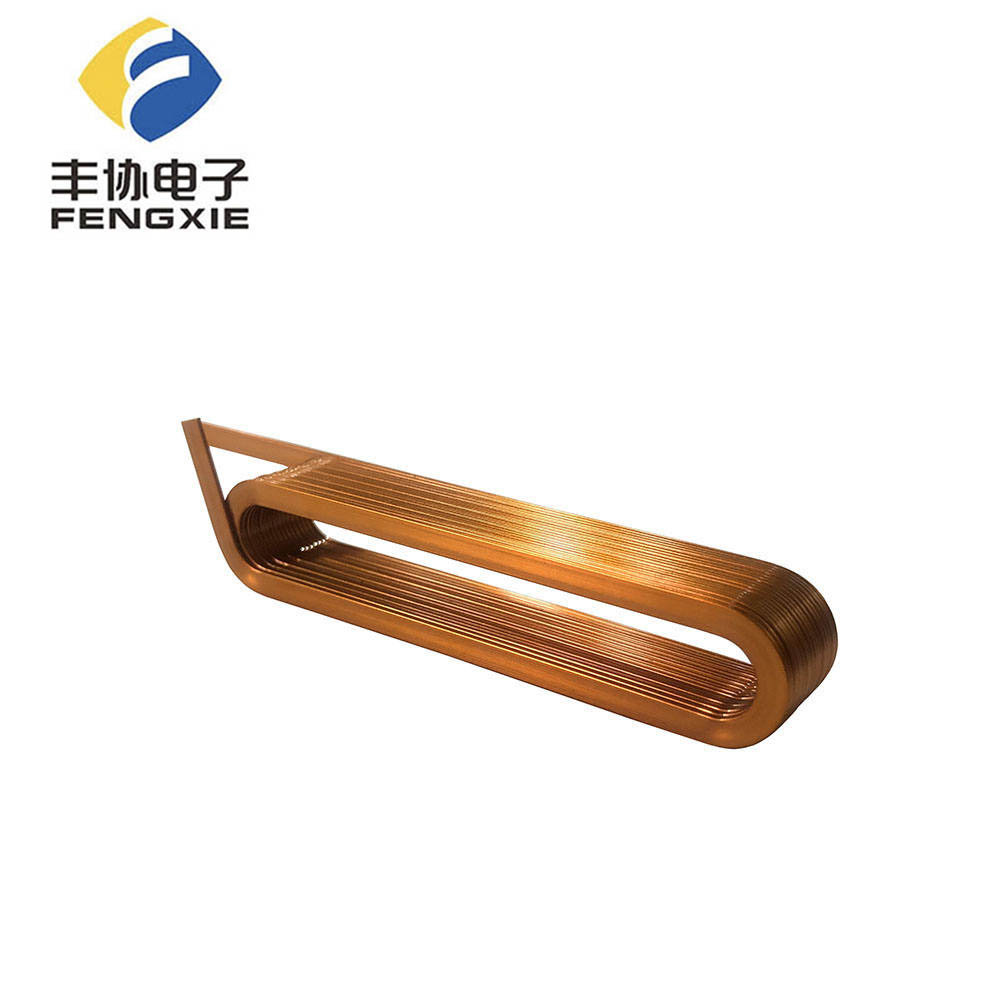

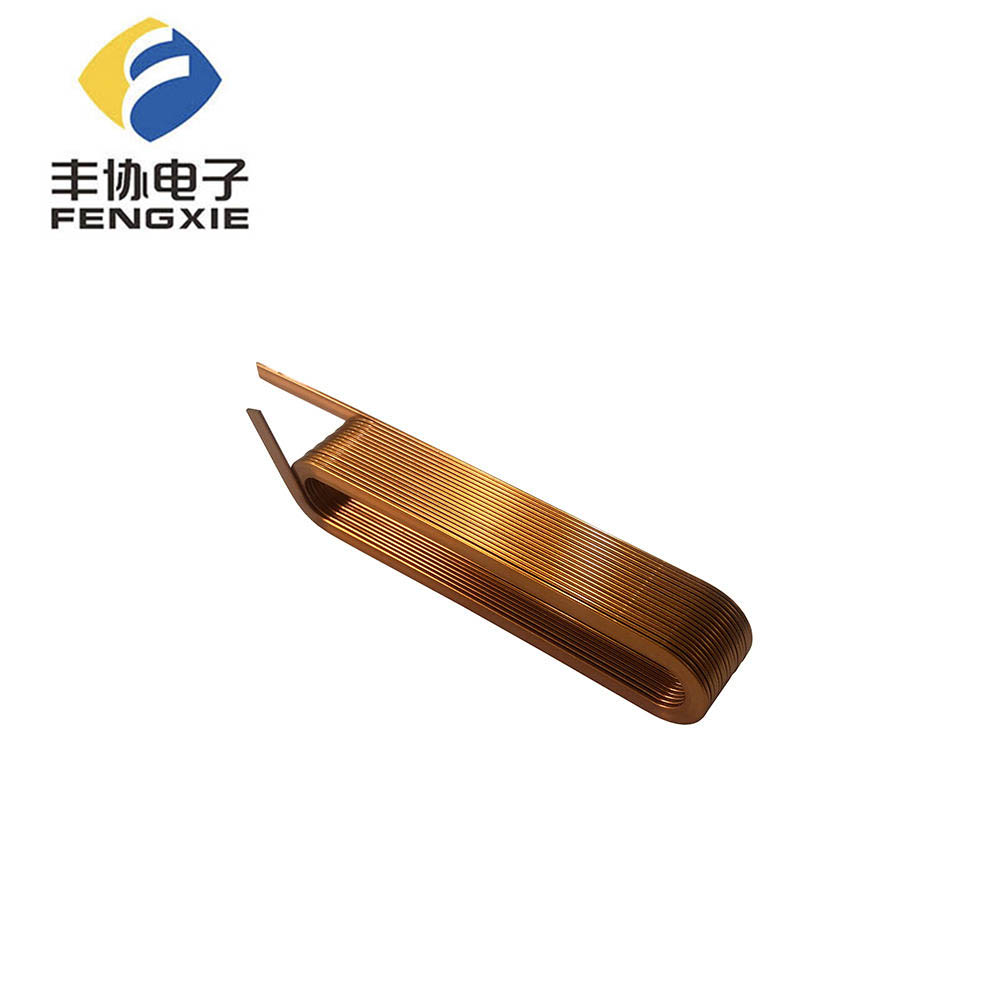

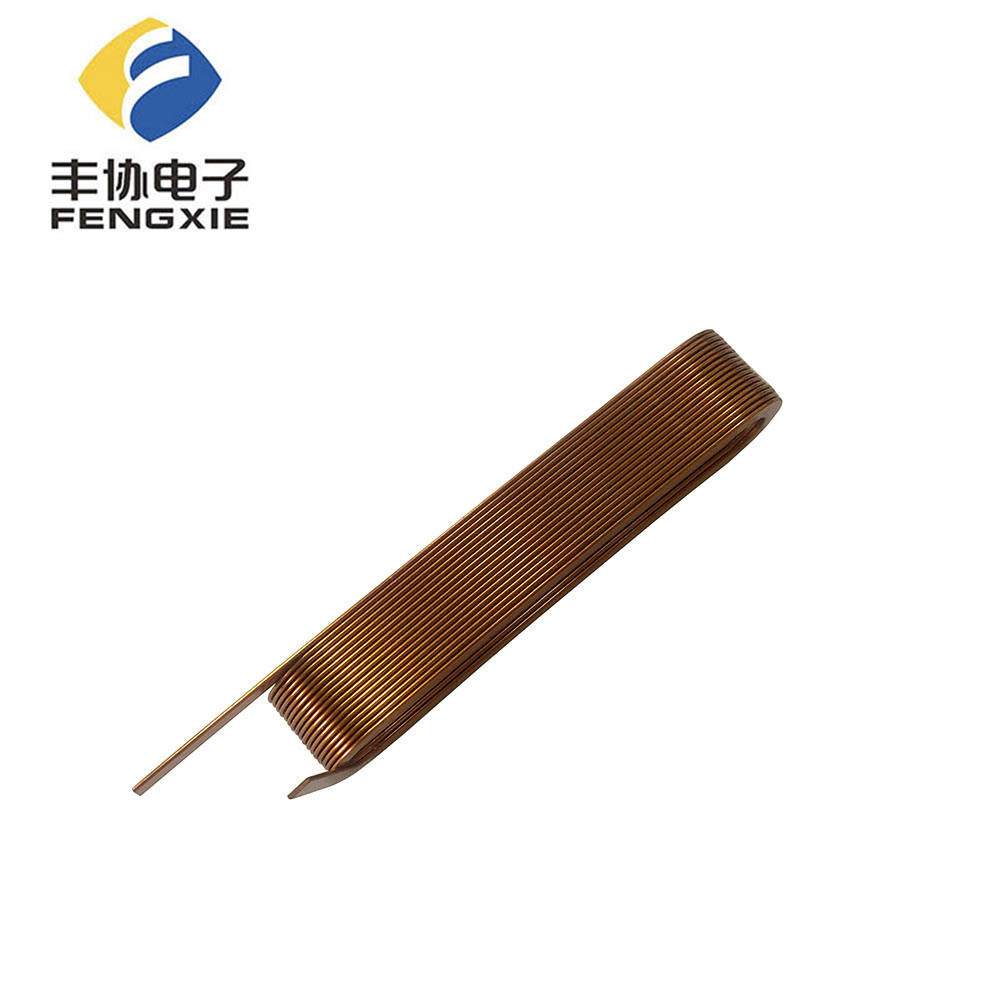

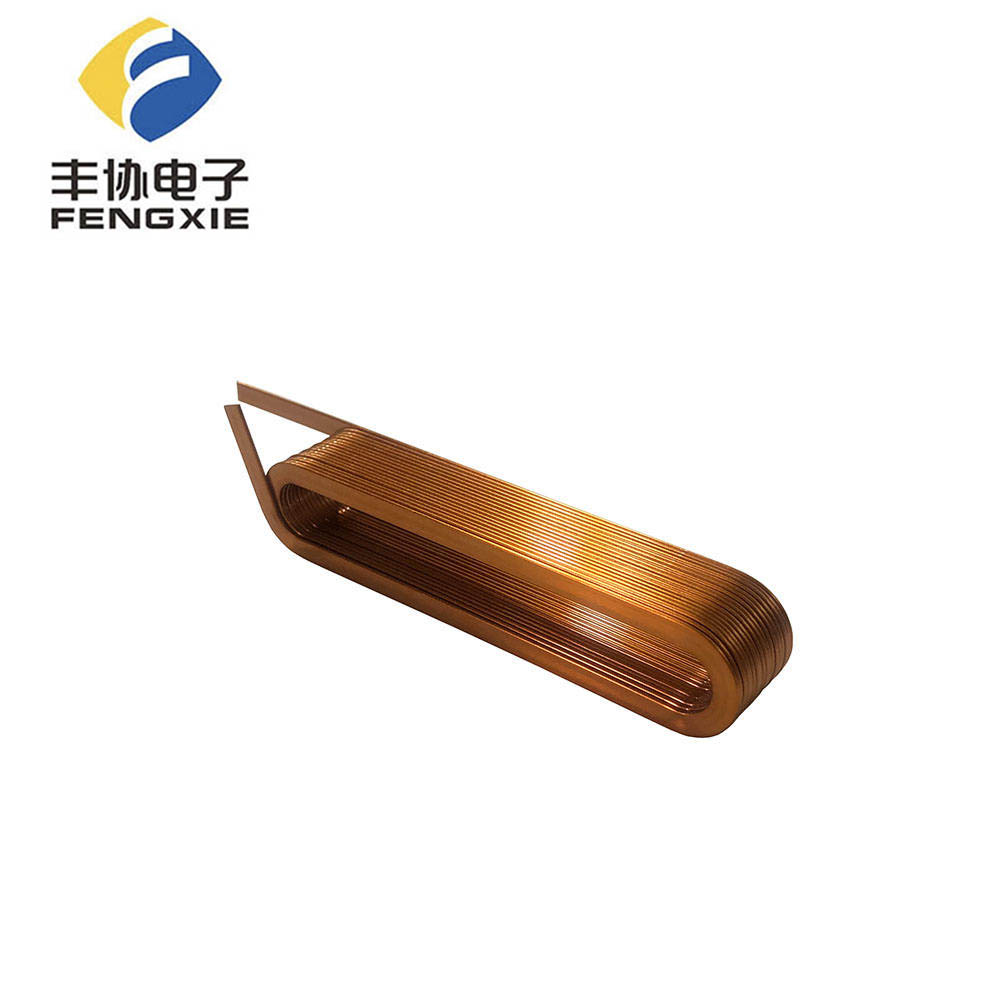

Electric Motor Copper Wire Coil
Key Specifications:
1. Coil Dimensions: 0.6×3.2×8×60 mm (Rectangular Copper Wire)
2. Overall Size: 90×10×10 mm
3. Turn Count: 18TS (Structured Winding)
4. Operating Temperature Range: -40℃ to +125℃
Features:
1. High-Density Precision Winding: 60×18 turn structure maximizes copper fill factor, enhancing power density and torque efficiency in motor applications.
2. Extended Thermal Endurance: Reliable operation across a wide temperature range from -40℃ to +125℃, suitable for continuous and dynamic loads.
3. Low-Loss Rectangular Wire Design: Flat copper wire reduces AC losses and improves heat dissipation for higher efficiency at high frequencies.
4. Compact & Robust Construction: The 90×10×10 mm form factor enables integration into space-constrained motor housings while maintaining mechanical stability.
Applications:
1. Brushless DC (BLDC) Motors for Electric Vehicles and Drones
2. Industrial Servo Motors and Actuators
3. HVAC Compressor Motors
4. Precision Robotics and Automation Drives
5. Electric Power Steering (EPS) Systems
