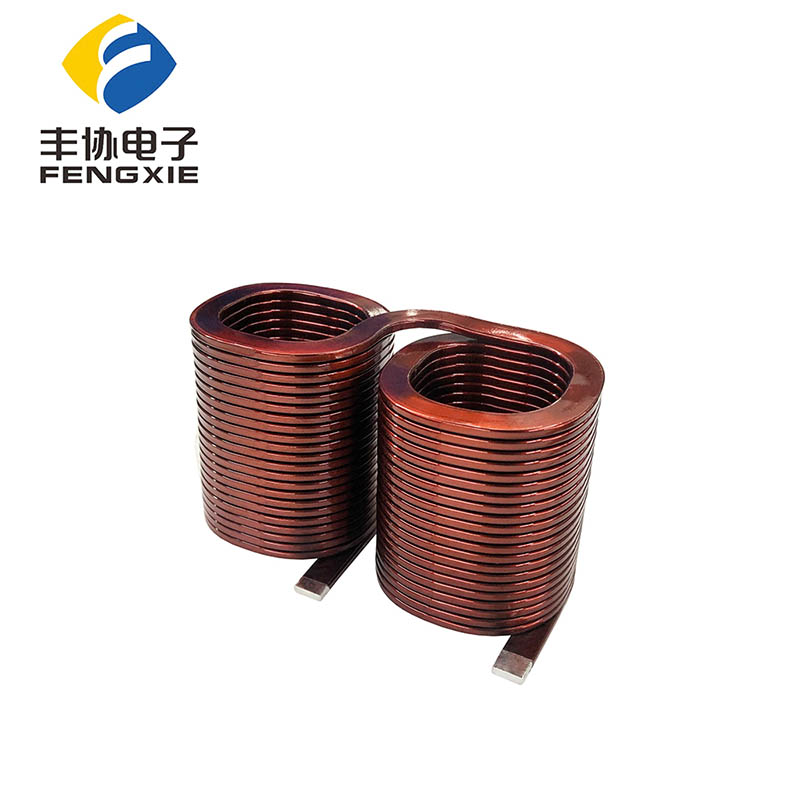

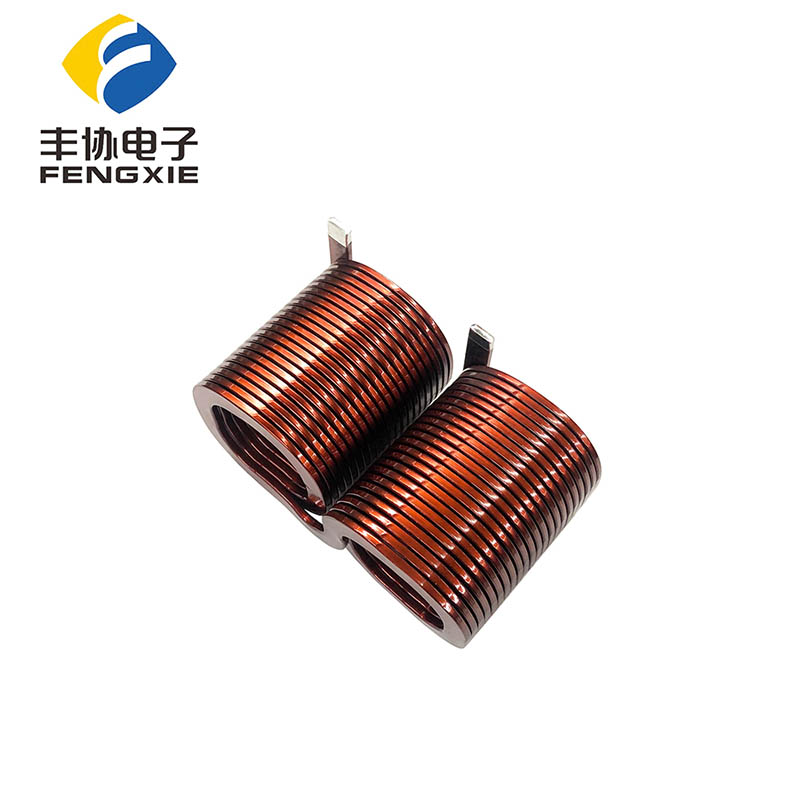

New Energy Double Inductor Coil
Key Specifications:
1. Core Dimensions: 2.0×6.0×27 mm
2. Overall Size: 53×81×40 mm
3. Turn Count: 22+22 Turns (Dual Winding)
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. Dual-Inductor Integrated Design: Combines two independent 22-turn windings in a single structure, enabling balanced current sharing and compact system integration.
2. Extended Environmental Resilience: Maintains stable electrical performance across a wide temperature range from -45℃ to +125℃, suitable for outdoor and harsh operating conditions.
3. High Power Density Architecture: Optimized magnetic layout delivers high inductance value and current capacity within a compact 53×81×40 mm form factor.
4. Enhanced Thermal Management: The symmetrical winding structure promotes uniform heat dissipation, reducing hot spots and improving long-term reliability.
Applications:
1. Bidirectional DC-DC Converters for Energy Storage Systems
2. Solar and Wind Power Inverters
3. Electric Vehicle On-board Chargers (OBC) and DC-DC Modules
4. Dual-Phase or Interleaved Power Supplies
5. Grid-Tied Renewable Energy Converters
