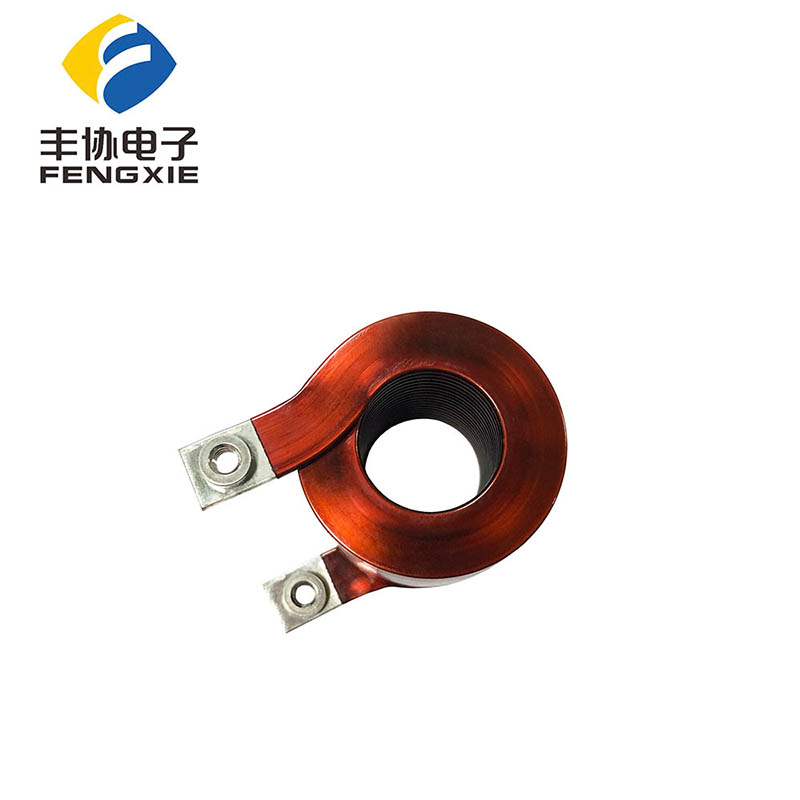

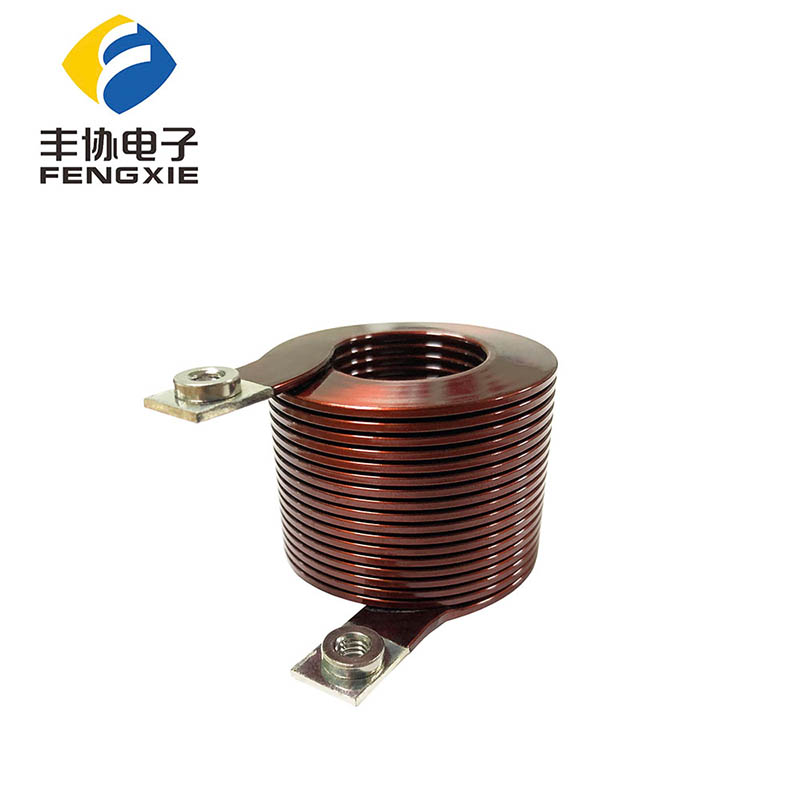

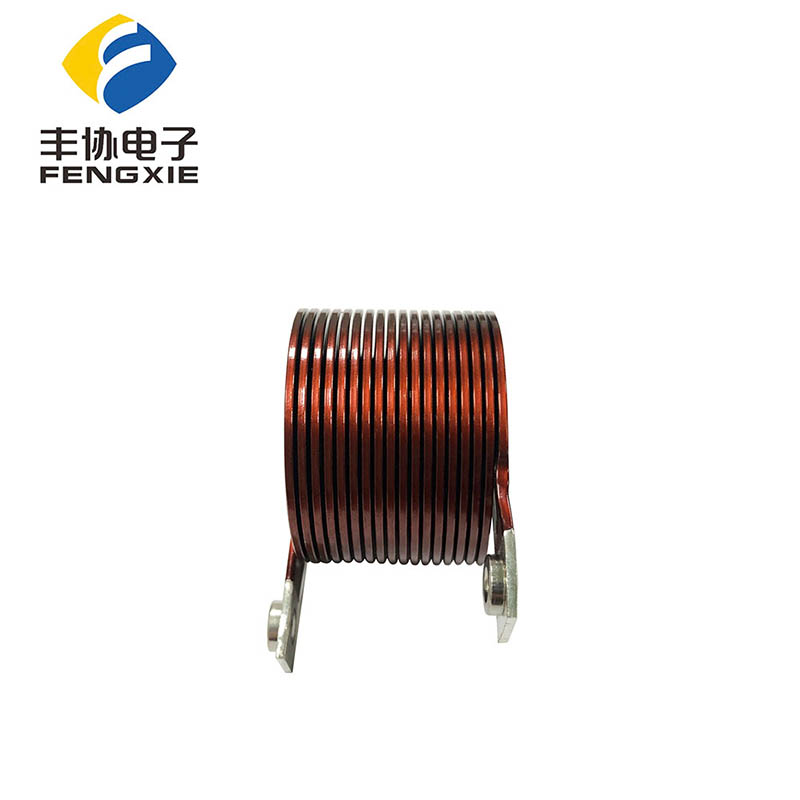

Enameled Flat Copper Wire Coil
Key Specifications:
1. Wire Dimensions: 1.0×5.0 mm (Flat Enameled Copper)
2. Overall Size: 56×40×40 mm
3. Turn Count: 17.75 Turns
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. Flat Wire Enameled Construction: Offers superior surface area for enhanced heat dissipation and reduced AC resistance in high-frequency operations.
2. Extended Temperature Range: Ensures stable performance under extreme thermal conditions from -45℃ to +125℃.
3. Optimized Winding Geometry: The 17.75-turn design provides precise inductance control and excellent magnetic field distribution.
4. Durable Insulation & Mechanical Strength: High-quality enamel coating ensures electrical isolation and structural integrity in demanding applications.
Applications:
1. High-Frequency Transformers
2. Switch-Mode Power Supplies (SMPS)
3. Electric Vehicle Charging Systems
4. Renewable Energy Inverters
5. Industrial Motor Drives and Welding Equipment
