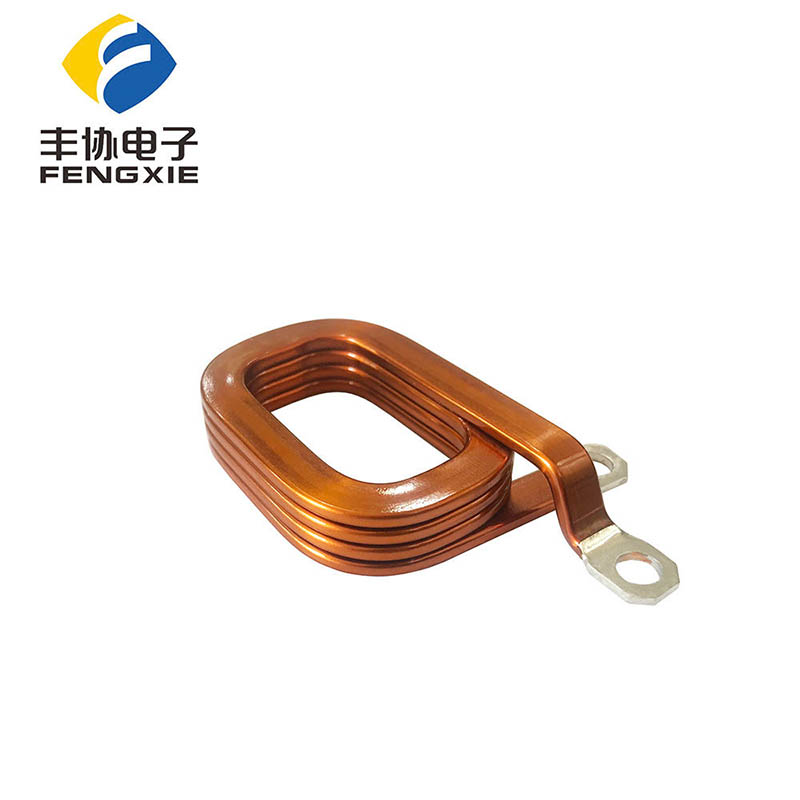

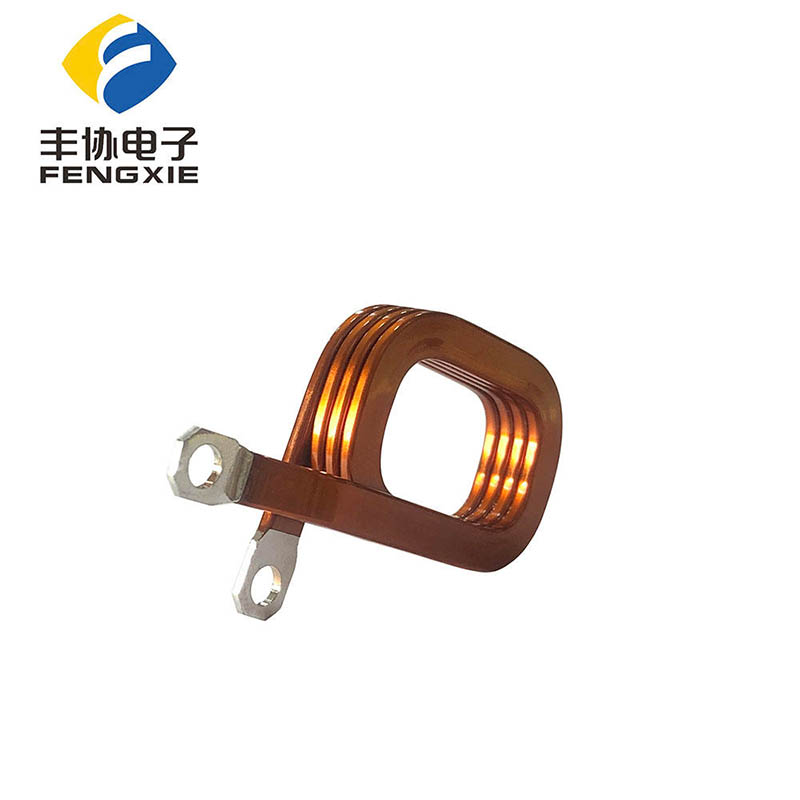

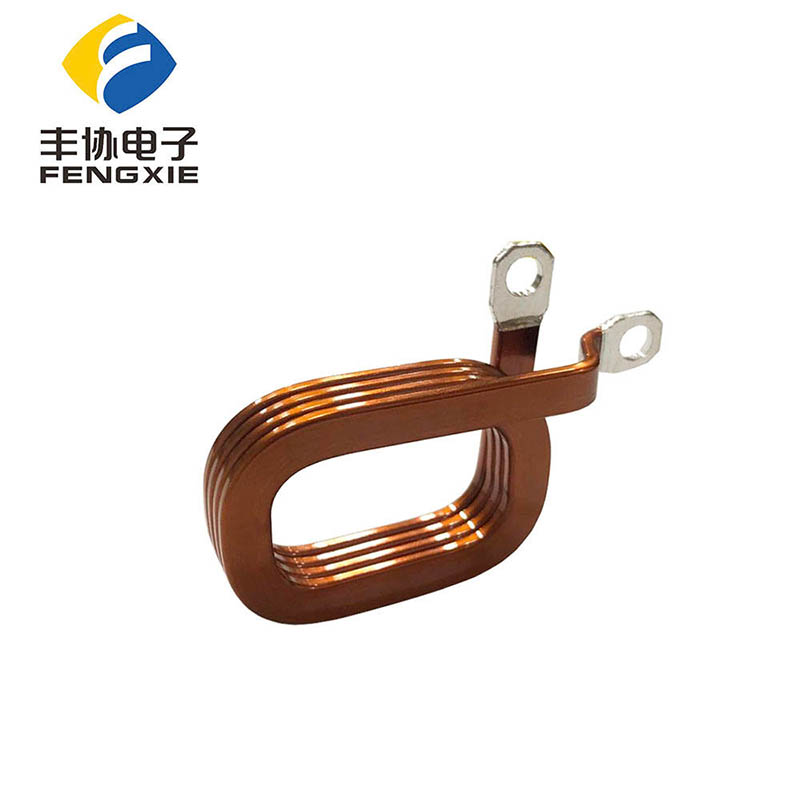

DC Converter Inductance Coil
Key Specifications:
1. Core Dimensions: 2.0×6.00×18×31 mm
2. Overall Size: 32×45×12 mm
3. Turn Count: 4TS
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. High-Efficiency Conversion Design: Optimized to deliver stable inductance and low core loss in DC-DC power conversion applications.
2. Wide Temperature Adaptability: Ensures reliable performance in harsh environments ranging from -45℃ to +125℃.
3. Compact & Low-Profile Form: With a height of only 12 mm, this coil is engineered for integration in space-constrained PCB layouts.
4. Multi-Layer Precision Winding: The 31×4-turn structure enhances current capacity while maintaining excellent electromagnetic stability and thermal dissipation.
Applications:
1. DC-DC Buck/Boost Converters
2. Voltage Regulator Modules (VRM)
3. Point-of-Load (POL) Power Supplies
4. Industrial Control Power Systems
5. Automotive On-board Power Converters
