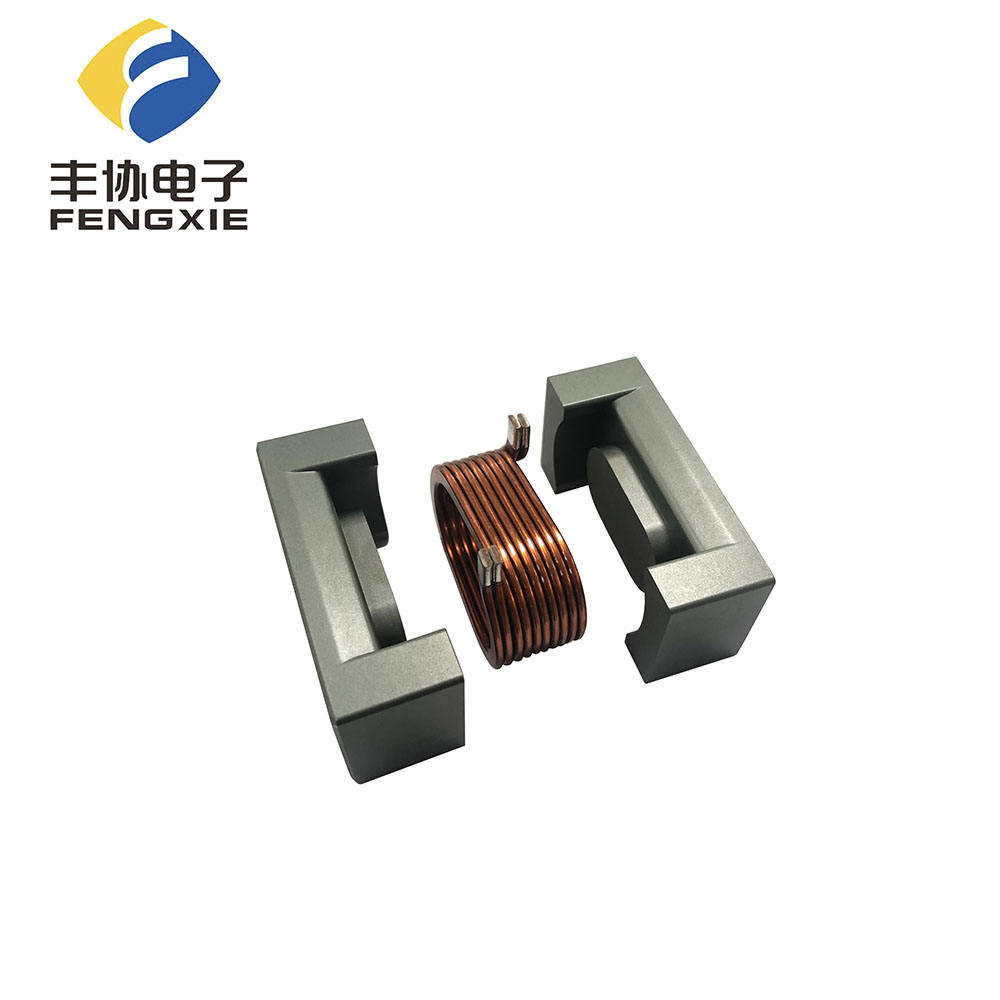

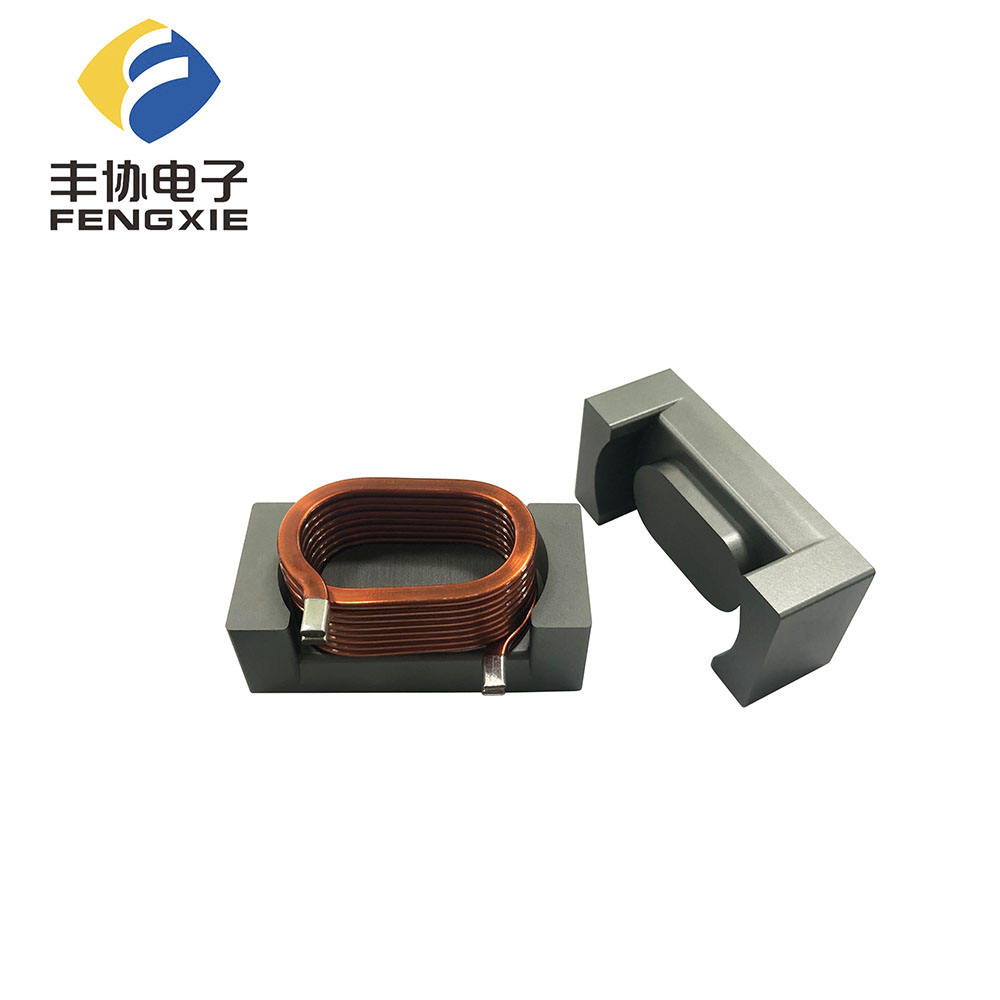

Double-Layer Wound Flat Copper Coil
Key Specifications:
1. Core Dimensions: 1.5×3.5 mm
2. Overall Size: 40×25×16 mm
3. Turn Count: 4.75 Turns (Double-layer wound)
4. Operating Temperature Range: -45℃ to +125℃
Features:
1. Double-layer Flat Copper Design: Enhances current capacity and heat dissipation, reducing AC resistance and eddy current losses
2. Extended Temperature Tolerance: Maintains stable electrical performance in extreme environments from -45℃ to +125℃
3. Compact & Low-profile Structure: Slim 16mm height enables integration in space-constrained high-density assemblies
4. Precision Layered Winding: Optimized 4.75-turn dual-layer configuration ensures high inductance accuracy and thermal reliability
Applications:
1. High-frequency Switch-mode Power Supplies
2. Automotive DC-DC Converters
3. Server & Data Center Power Modules
4. Renewable Energy Inverters
5. Industrial Motor Drives & Control Systems
