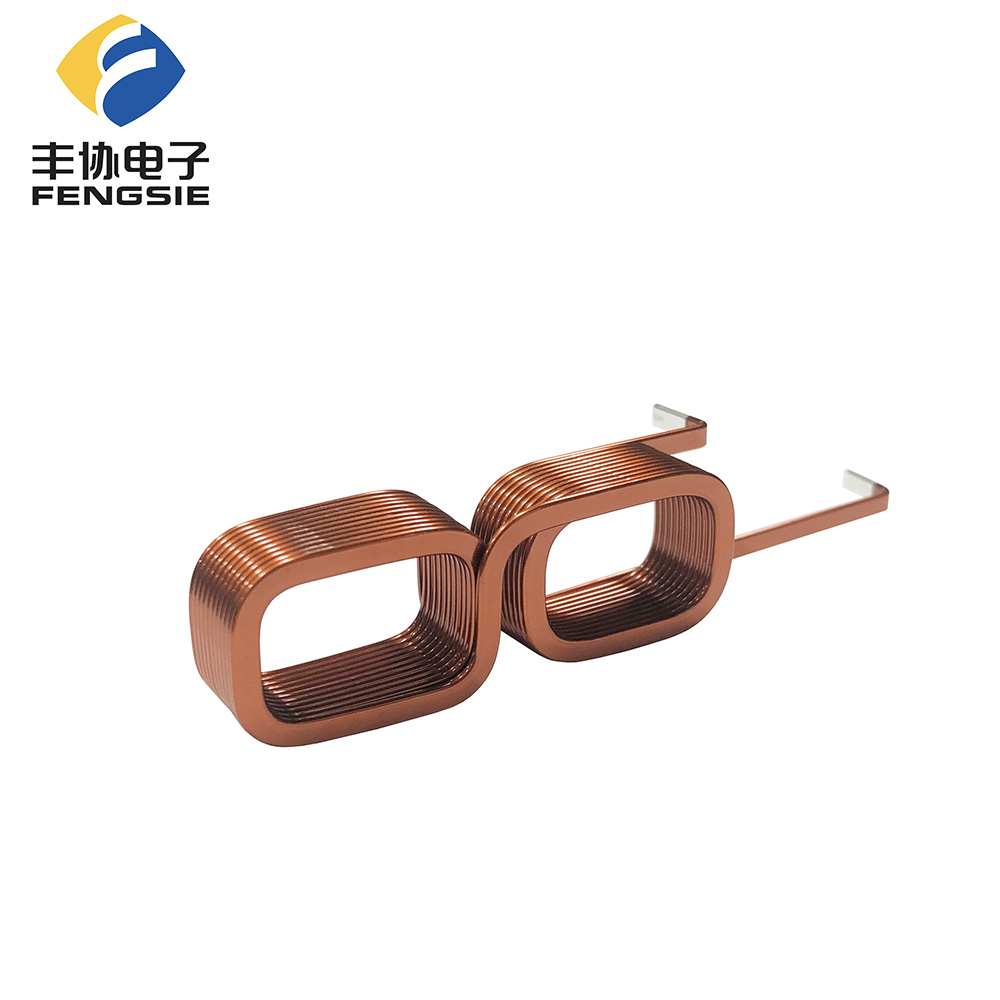

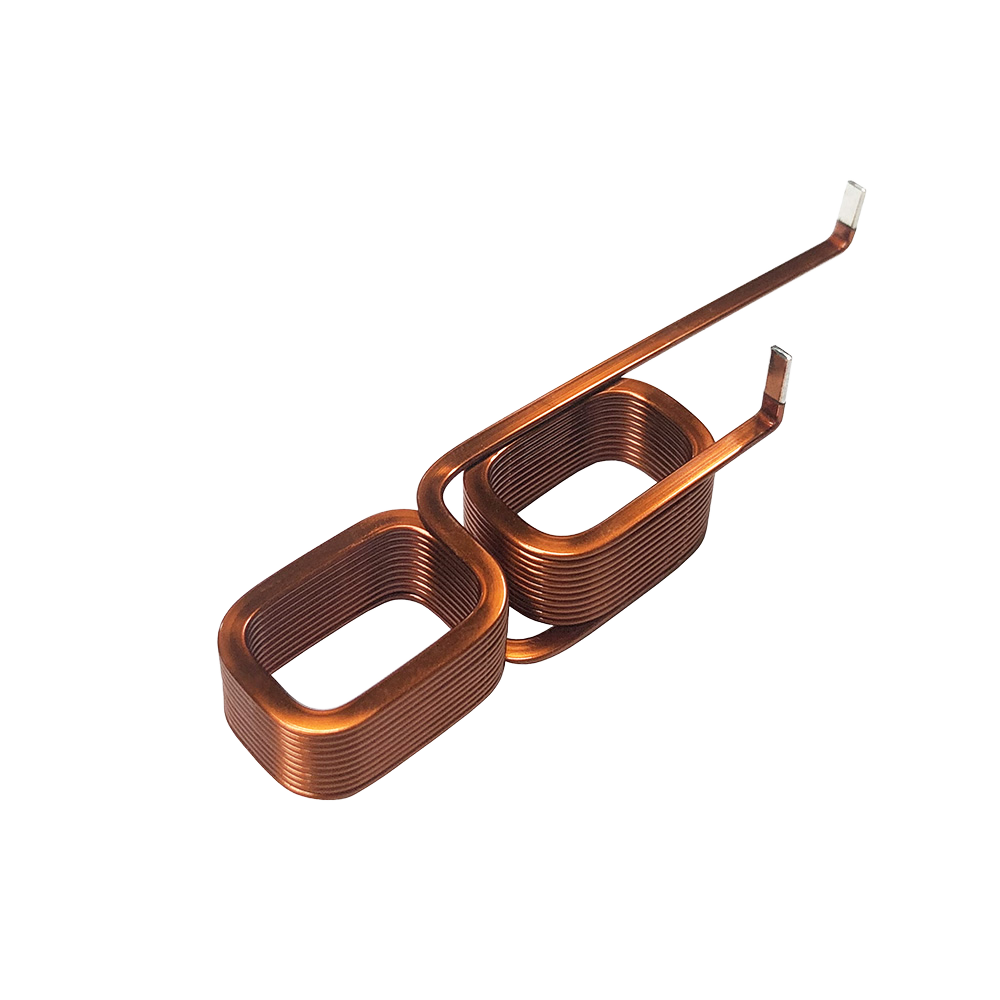

Dual-Wound High Current Inductor
Key Specifications:
1. Core Dimensions: 0.8×2.5×11 mm
2. Overall Size: 30×15×15 mm
3. Turn Count: 11 Turns (Dual-Wound)
4. Operating Temperature Range: -25℃ to +125℃
Features:
1. Dual-Wound Design: Provides balanced inductance and enhanced current handling capacity for high-power parallel circuits
2. Compact Structural Layout: Optimized 15 cm height design ensures effective space utilization in system integration
3. Controlled Thermal Performance: Maintains stable operation across environments from -25℃ to +125℃
4. High Current Tolerance: Engineered to sustain elevated current levels with minimal losses and magnetic interference
Applications:
1. Multi-phase Power Supplies
2. High Current DC-DC Converters
3. Parallel Redundant Power Systems
4. Industrial Motor Drives
5. Energy Storage and Power Distribution Units
