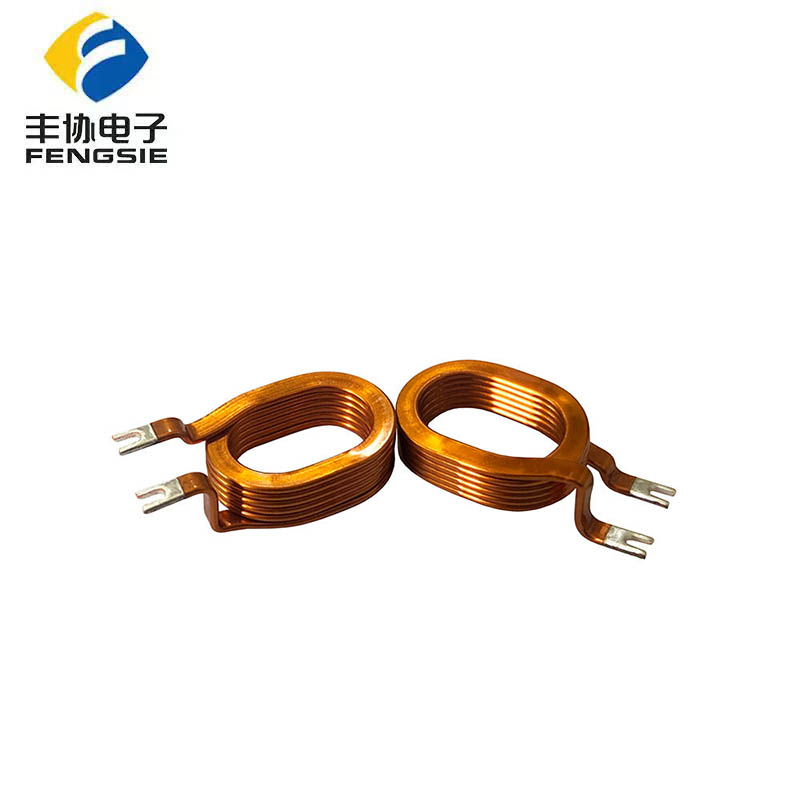

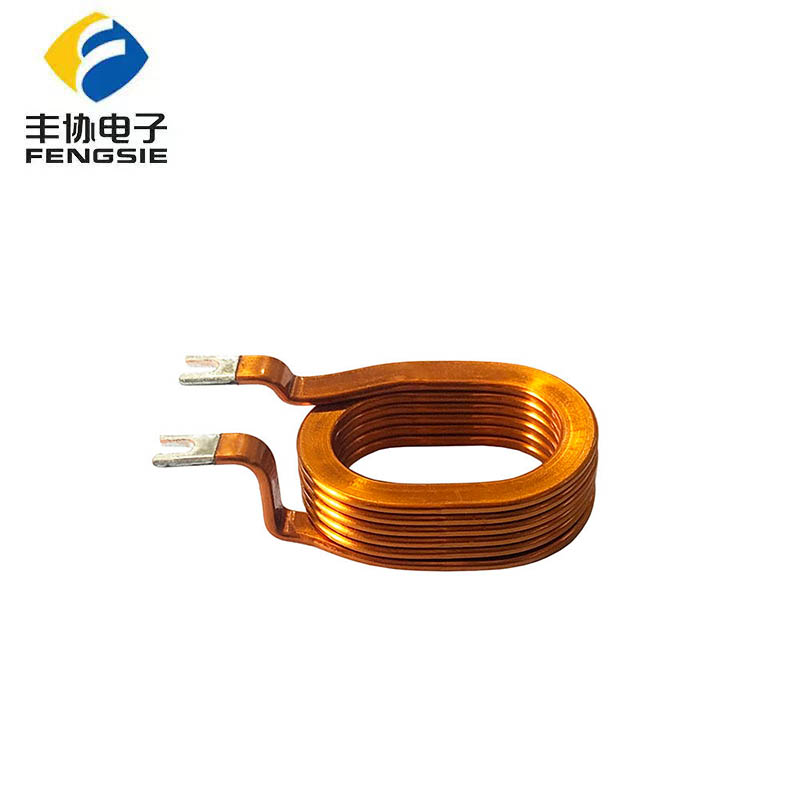

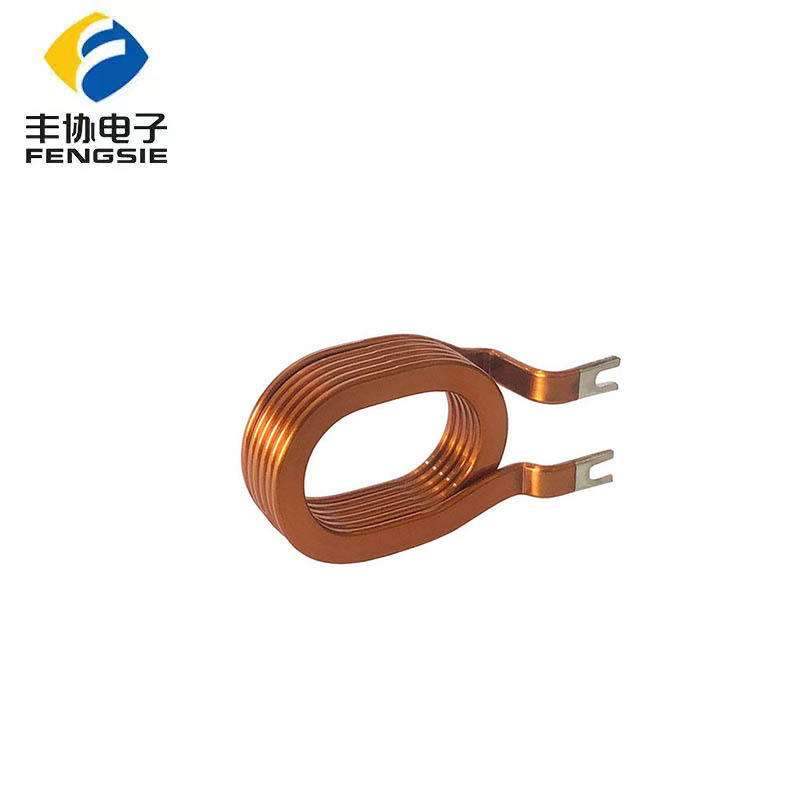

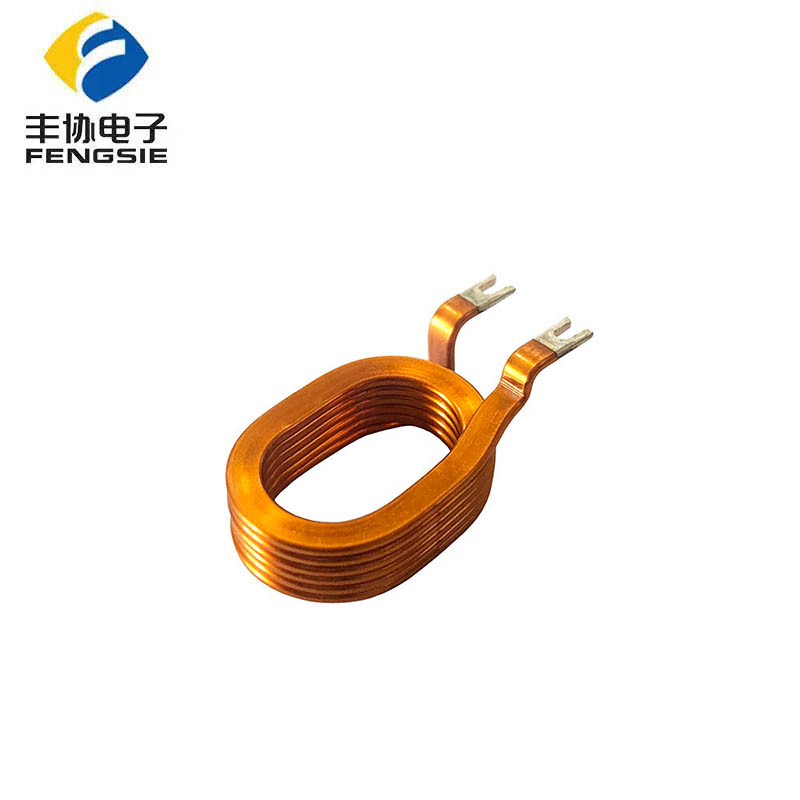

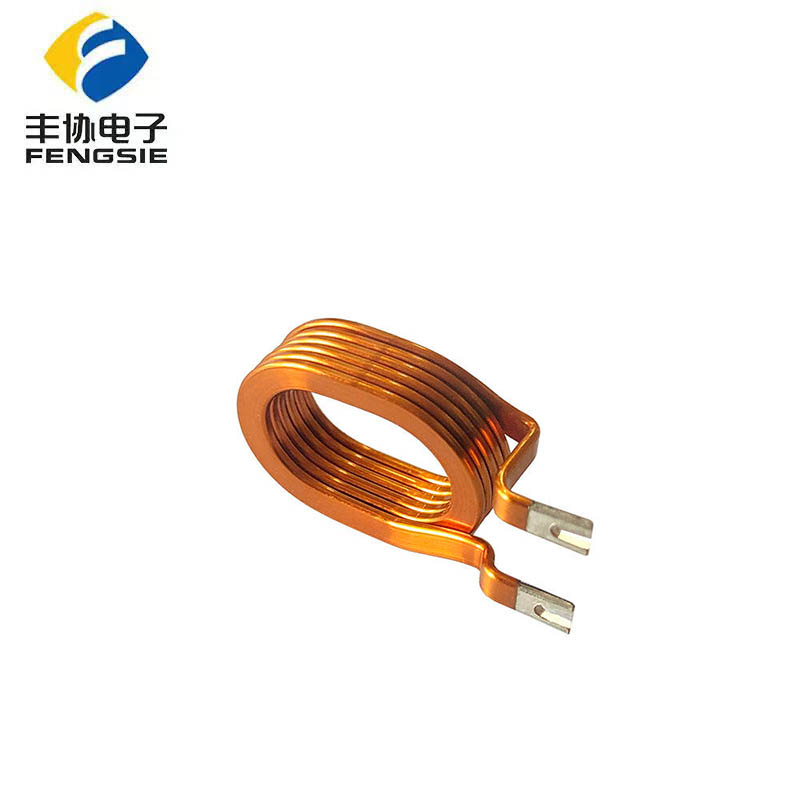

Energy Storage Inductor Coil
Key Specifications:
1. Core Dimensions: 0.8×2.3×9.0 mm
2. Overall Size: 15×25×6 mm (Max Height: 6.0mm)
3. Turn Count: 5.75 Turns
4. Operating Temperature Range: -45℃ to +125℃
1. High Energy Density: Optimized for efficient energy storage and release in compact spaces
2. Extended Temperature Range: Reliable performance across extreme environments from -45℃ to +125℃
3. Ultra-Low Profile: Slim design with maximum height of 6.0mm enables high-density circuit layouts
4. Precision Winding: Advanced 5.75-turn configuration ensures optimal magnetic characteristics and minimal losses
Applications:
1. Energy Storage Systems
2. Portable Electronic Devices
3. Power Management Circuits
4. Battery Management Systems
5. DC-DC Converters
Designed for modern energy storage applications, this compact inductor coil delivers exceptional power handling capability, superior thermal performance, and reliable operation in space-constrained environments.
