1.High-Speed, Stable Wire Feeding : Equipped with rubber roller feeding, ideal for thin and delicate enamelled wires — fast, stable, and resistant to bending.Combined with pneumatic mold feeding for large-diameter wires, offering broad adaptability.
2.High-Precision Synchronized Drive System : Dual linear guides with precision helical gear transmission ensure accuracy and smooth operation.The transfer motor moves in synchronization with the winding head via interpolation, delivering the wire precisely into the winding slot.
3.Integrated Wire Pressing and Cutting Mechanism : Guides the wire accurately into the winding slot and keeps it firmly in place during winding, preventing misalignment or wire jumping.
4.Fully Automated Process, Labor-Saving Operation : From feeding and winding to coil pickup, all steps are automated — enabling one operator to manage multiple machines and greatly improving efficiency.
5.Versatile Application Across Industries : Ideal for high-frequency transformers, energy storage inductors, and network communication coils.Designed to meet demanding requirements for dual-coil structures and precision flat or round wire winding.

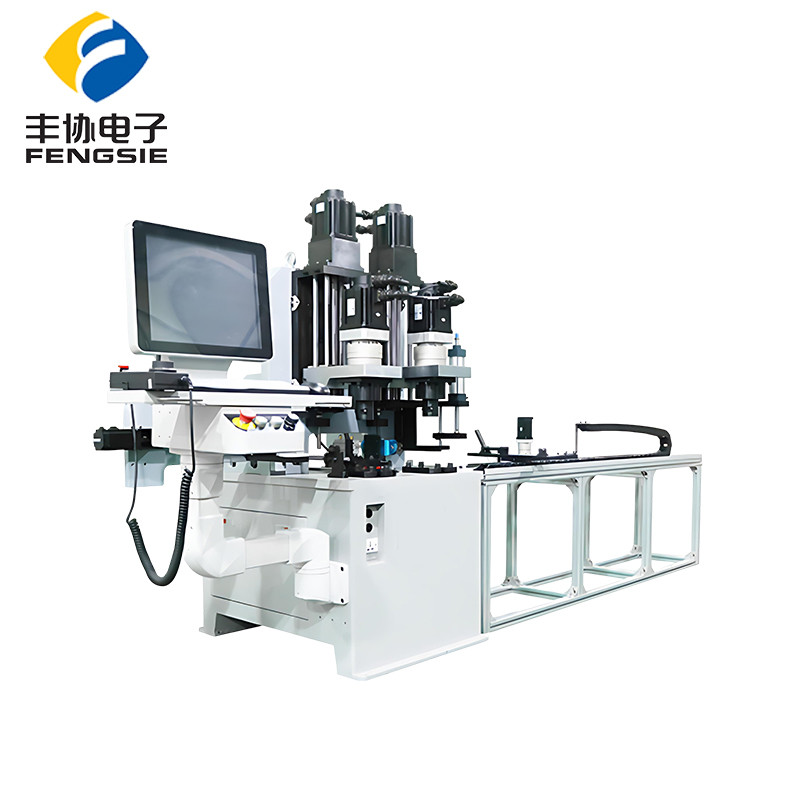

Model | FX-8F-750 |
Processing Capacity | Thickness : 1.0mm ≤ T ≤ 5.0mm Width : 5.0mm ≤ W ≤ 15.0mm S=W*T≤ 60mm2 |
Axis | 6 |
Winding Motor Power | 1.5KW*2 |
Y1 Wire Feeding Motor Power | 1.5KW |
Y2 Wire Feeding Motor Power | 0.75KW |
Gripper Motor Power | 0.75KW |
Transfer Motor Power | 1.5KW |
Dimension(LxWxH) | 7560X1650X1820(mm³) |
Weight | 2500kg |
