1.Specially designed for insulated busbars: structure and tooling are optimized for plastic-coated copper/aluminum busbars to prevent insulation damage and rebound.
2.Multi-angle bending capability: supports U-shape, Z-shape, L-shape and other complex bends to meet diverse wiring layouts.
3.High level of automation: full-servo drive system ensures stable operation and precise angle control.
4.Supports 3D drawing import: auto-generates bending programs and simulates bending paths to reduce setup time and material cost.
5.Customizable tooling: bending radius and structure can be tailored based on insulation thickness and material hardness.
6.High-efficiency production: easy to operate with fast tool change, suitable for flexible and multi-variety manufacturing.

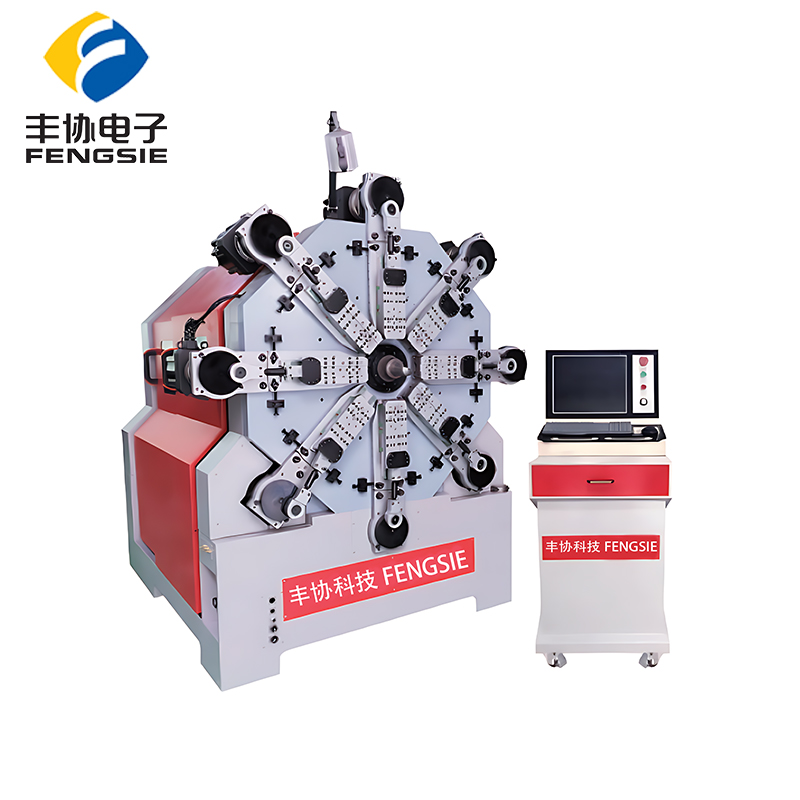

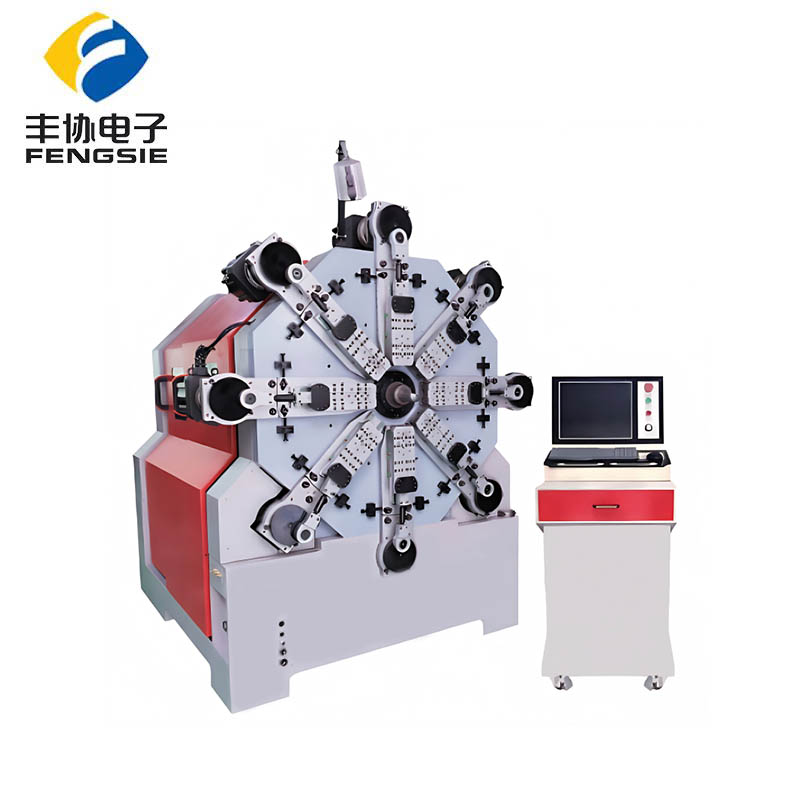

Model	FX-30E-7
Processing Capacity	Thickness : 2.0mm ~ 7.0mm Width : 13.0mm ~ 30.0mm
Axis	13-16
Wire Feed Wheel Sets	3Sets
Wire Feeding Motor Power	5.5KW
Wire Rotation Motor Power	4.5KW
Mandrel Rotation Motor Power	2.0KW
Slide Motor Power	1.8KW×8
Spinner Motor Power	1.2KW
Cutter Motor Power	1.0KW
Dimension (LxWxH)	2600X1750X2000（mm3）
Weight	5000kg
